Carbonit DUO-HP Lime

Item number: 115DUOHPS2


629,00 €

including 17% VAT., no shipping costs

Old price: 649,00 €
Recommended retail price: 689,00 €
(You save 8.71%, that is 60,00 €)
2 pc. In stock

Shipping time: 1 - 3 workdays

pc.


Description

Carbonit DUO-HP Lime under counter water filter

  • Double effect: Clever combination of two different cartridge types.
  • With the serial setup, the same water flows through both filter cartridges.
  • The water is first decalcified by the ion exchange resins.
  • In a second step, occurs the pollution filtration inside the NFP Premium-9 filter cartridge.
  • The outstanding filtration results have been proven by many scientific assessments.
  • More pleasure and less calcium deposition. Decalcification level can be determined individually.

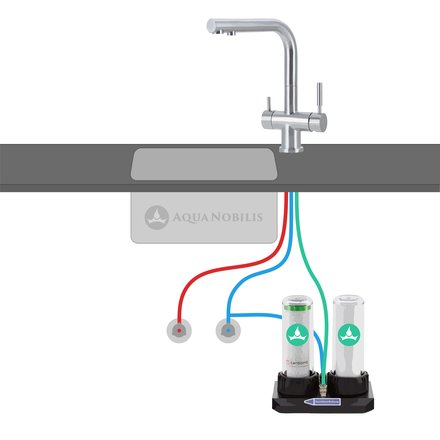

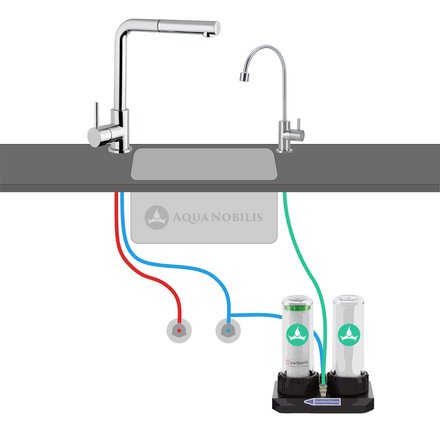

  • Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
  • The high-quality and massive base, made from polyoxymethylen, is manufactured entirely in Germany.
  • No drilling: The filter unit can be located decently under the counter, avoiding any compromise on kitchen design.
  • Cartridge replacement is comfortable and easy with the quick couplings.

Compatible filter cartridges

  • The Carbonit DUO-HP Lime will be delivered with two different filter cartridges:

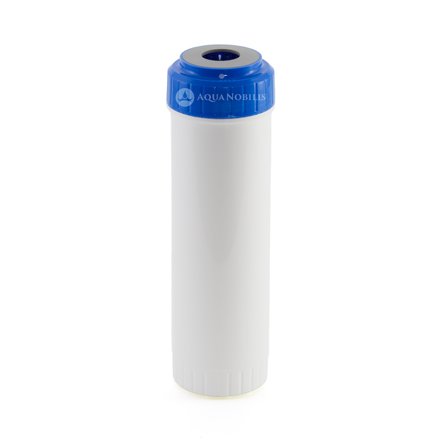

  • Cartridge 1: refill cartridge NF2 with reclaimable ion exchange resin - lime (total hardness)

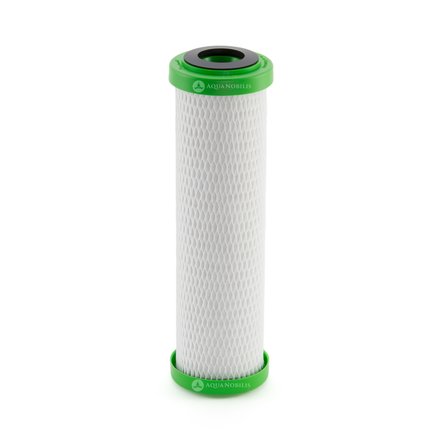

  • Cartridge 2: NFP Premium-9:
    • pure activated carbon filter cartridge
    • filter mesh: 0.45 µm; flow rate: 2.5 l/min (at 4 bar)
    • very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
    • provides the highest protection against bacteria (see assessments)
  • Compatible to all 9 3/4" filter cartridges.
  • For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
  • Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.

Installation

  • The DUO-HP Lime filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
  • The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
  • Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
  • Only to be used with cold water and must be protected against freezing.

Dimensions and other information on the Carbonit DUO-HP Lime filter

Type of connection: Under counter
H x B x T: 305 x 280 x 175 mm
Material: Grilamid TR 90, POM (Hostaform C 2571)
Length of the filter cartridge: 248 mm | 9 3/4"
Filter mesh: 0,45 µm
Flow rate (at 4 bar): approx. 2,5 l/min
Adsorptive retention rate: Polar pesticides, medical residues, bacteria: > 99%
Adsorptive retention rate: Chlorine: > 99%
Adsorptive retention rate: Lead, Copper: > 90%
Blocks bacteria: Yes
Adsorptive retention capacity: 20 m3
Particle retention capacity: 20 m3
Max. useful life of the filter cartridge: 6 months
Suitable for low pressure boilers: Yes
Length of the connection hoses: approx. 800 mm
Connection: 3/8" union nut, Compression fitting (10 mm), NW 7,2 Quick couplings

Scope of delivery

Scope of delivery

This Carbonit DUO-HP Lime set contains the following parts
  • one Carbonit DUO-HP (serial) basic module with two quick couplings (DN 7,2)

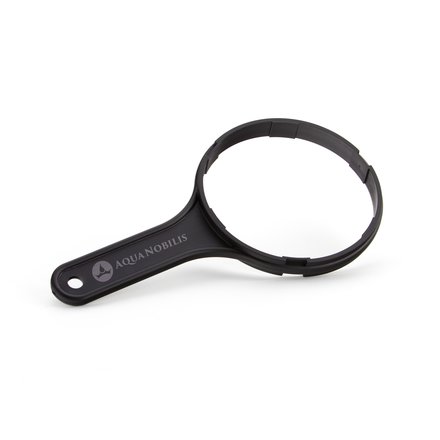

  • one device key

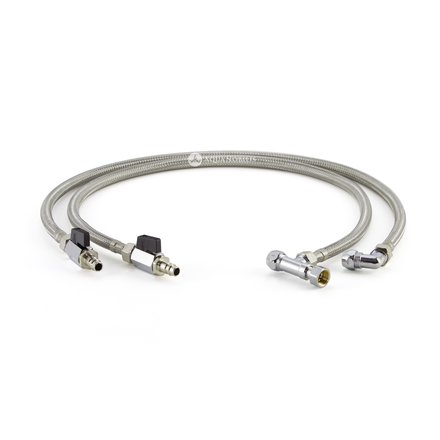

  • one inlet hose kit containing:
    • one flexible hose (approx. 80 cm long with straight connections)
    • with an angle valve tee (3/8") on one side
    • and a ball valve with nipple (DN 7,2) on the other side
  • one outlet hose kit containing:
    • one flexible hose (approx. 80 cm long with straight connections)
    • with a ball valve with nipple (DN 7,2) on one side
    • and one 90° compression fitting (10 mm) on the other side
  • one Carbonit Refill cartridge NF2 filter cartridge

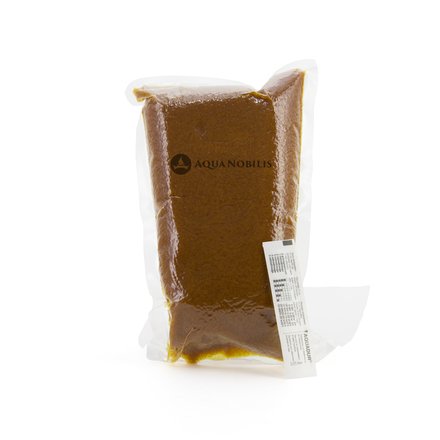

  • one pack of Carbonit lime (total hardness) ion exchange resins
  • one Carbonit NFP Premium-9 filter cartridge
  • and total hardness test sticks
