CITO DUO Special
Description
Basics
- The CITO-QC is the further development of the confirmed VARIO-HP filter housing.
- The outstanding filtration results have been proven by many scientific assessments.
- Filter replacement even simpler: Thanks to the QuickConnect (QC) bayonet coupling the filter-socket can be easily dismounted as a whole.
- The head of the filter-assembly itself remains permanently attached to the wall, no hoses have to be touched.
- The filer-socket can be opened and the filter cartridge can be replaced conveniently in the sink using the enclosed keys.
- The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
- Double effect: Clever combination of two different cartridge types.
- With the serial setup, the same water flows through both filter cartridges.
- In a first step, the clouding particles are removed by the textile VFS prefilter (1 µm) cartridge.
- In a second step, occurs the pollution filtration inside the GFP Premium-9 filter cartridge.
- The recommended replacement interval (6 months) of the activated carbon cartridge can be better utilized.
- No premature filter clogging and more efficient filter performance.
- Recommended for old water pipes and high particle content and clouding exposure .

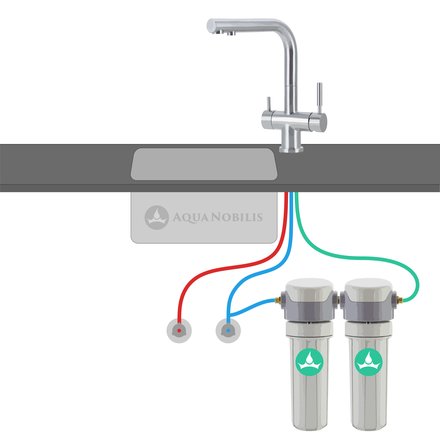

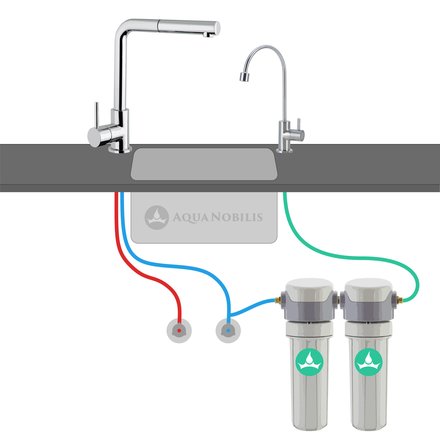

- Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
Compatible filter cartridges
- Will be delivered with two different filter cartridges:

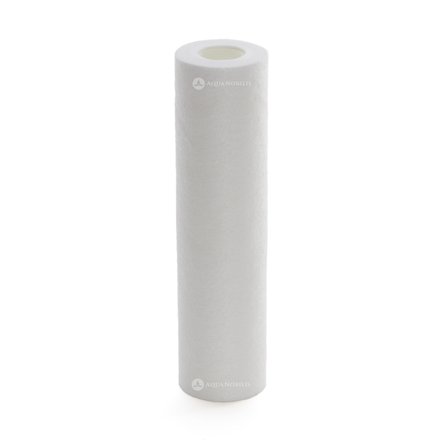

- Cartridge 1: VFS prefilter:
- mechanical removal of particles and clouding
- filter mesh: 1 µm

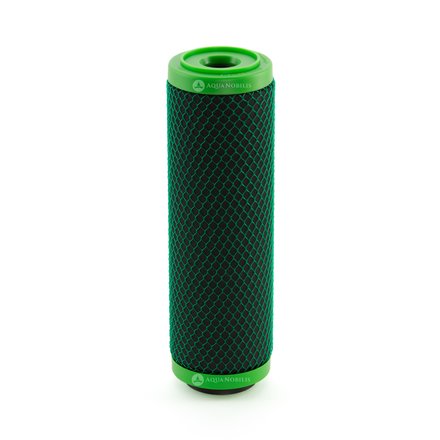

- Cartridge 2: GFP Premium-9:
- pure activated carbon filter cartridge
- filter mesh: 0.40 µm; flow rate: 2 l/min (at 4 bar)
- very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
- provides the highest protection against bacteria (see assessments)
- Compatible to all 9 3/4" filter cartridges.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
Installation
- The filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The unit is to be permanently installed to the wall.
- Dimensions without hoses (W x H x D): 31.5 x 38.5 x 14.5 cm3. With hoses 41 cm wide. CAUTION: Filter cartridge replacement requires a free space of 5 cm below the installed unit.
- The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
- TIP: When installing the ball valve directly at the angle valve tee, the filter unit plus hoses is only 37.5 cm wide.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Scope of delivery
Scope of delivery
This CITO DUO Sepcial set contains the following parts
- two Carbonit CITO-QC basic modules containing each:
- one CITO-QC device head with 3/8" connections and the Quick Connect filter cup

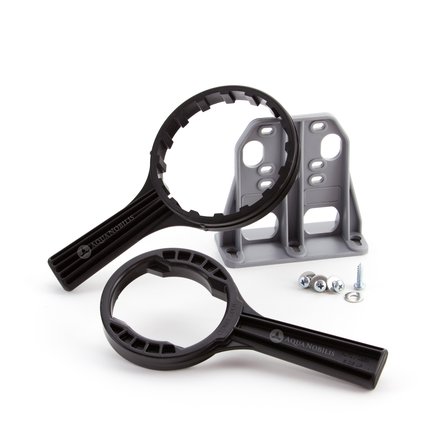

- one plastic wall mount inlcuding screws to mount it on the device head
- two device keys

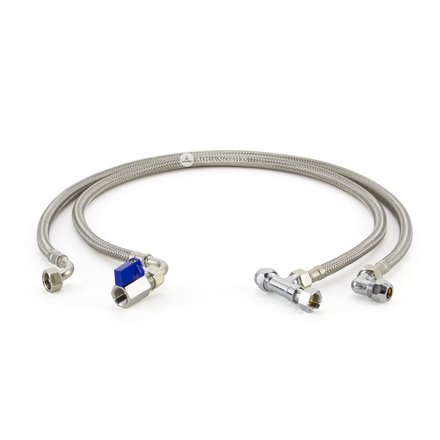

- one inlet hose kit containing:
- one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
- with an angle valve tee (3/8") on one side
- and a stainless steel ball valve on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
- with a union nut (3/8") on one side
- and one 90° compression fitting (10 mm) on the other side
- one Carbonit VFS Prefilter 1 µm
- one Carbonit GFP Premium-9 filter cartridge
Files
User manualCharacteristics
Characteristics
| Type of connection: | Under counter - separate withdrawl |
| Width: | 33 cm |
| Height: | 38.5 cm |
| Depth: | 14.5 cm |
| Length of the filter cartridge: | 248 mm (9 3/4") |
| Filter mesh (µm): | 0.40 1 |
| Adsorptive retention rate (Polar pesticides, medical residues, bacteria, ...): | >99% |
| Flow rate (l/min at 4 bar): | 2 |
| Adsorptive retention rate (Lead, Copper): | >93% |
| Adsorptive retention capacity: | 15.5 m³ |
| Adsorptive retention rate (Chlorine): | >99% |
| Particle retention capacity: | 12.5 m³ |
| Max. useful life of the filter cartridge: | 6 months |
| Blocks bacteria: | Yes |
| Contains: | Activated carbon Fine PP structure |
| Material: | PP |
| Length of the hoses: | 80 cm |
| Connection: | 3/8" union nut Compression fitting (10 mm) |
