Alvito Paola Neo three way faucet
- Use filtered and unfiltered water separately but still from one tap.
- Separate valves and outlets for filtered and unfiltered water.
- The 4th way can optionally be connected to a carbonator system. (Additional hose is required!)
- Made in Italy: Very high quality workmanship and stylish design.
- This sink tap exists in two different finishes chrome-plated brass or brass with a matt black galvanized surface.
- Durable ceramic cartridge and 360° swiveling spout.
- With the right connection adapter (optional) also suitable for whirlers. (Note the distance between the two outlets!)
- Suitable for all under counter filters.
- Not suitable for low-pressure boilers! The model 3 way low pressure faucet Paola Neo is suitable for this.
Installation
- Height of the Alvito Paola Neo tap: 348 mm (from worktop).
- Height of the spout: 320 mm (from the worktop).
- For a maximum worktop thickness of 40 mm.
- Connection hoses: 450 mm. If necessary, these can be extended.
- For further information and exact dimensions please refer to the tab Characteristics.

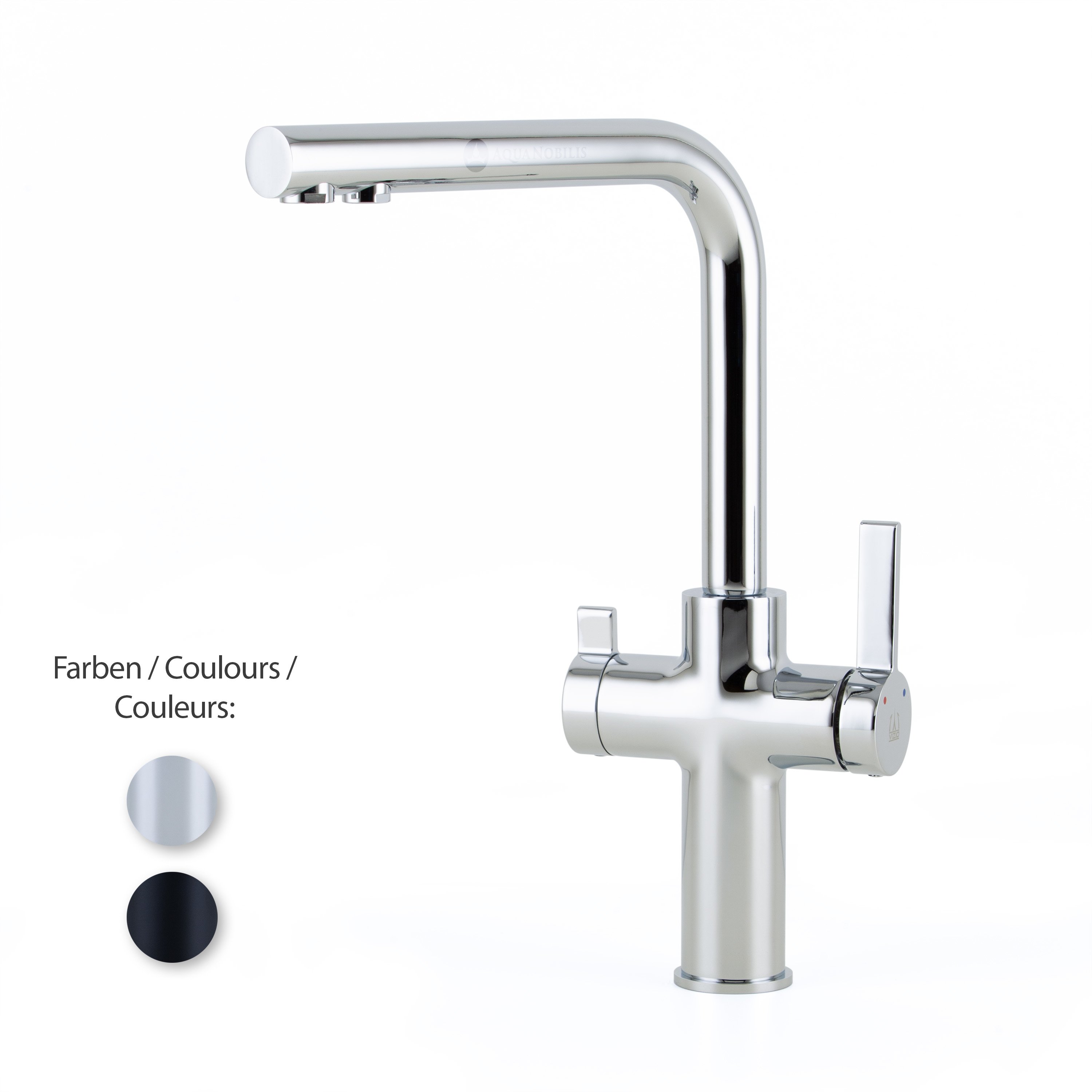

Available variants
The Paola Neo faucet is available in two color versions:

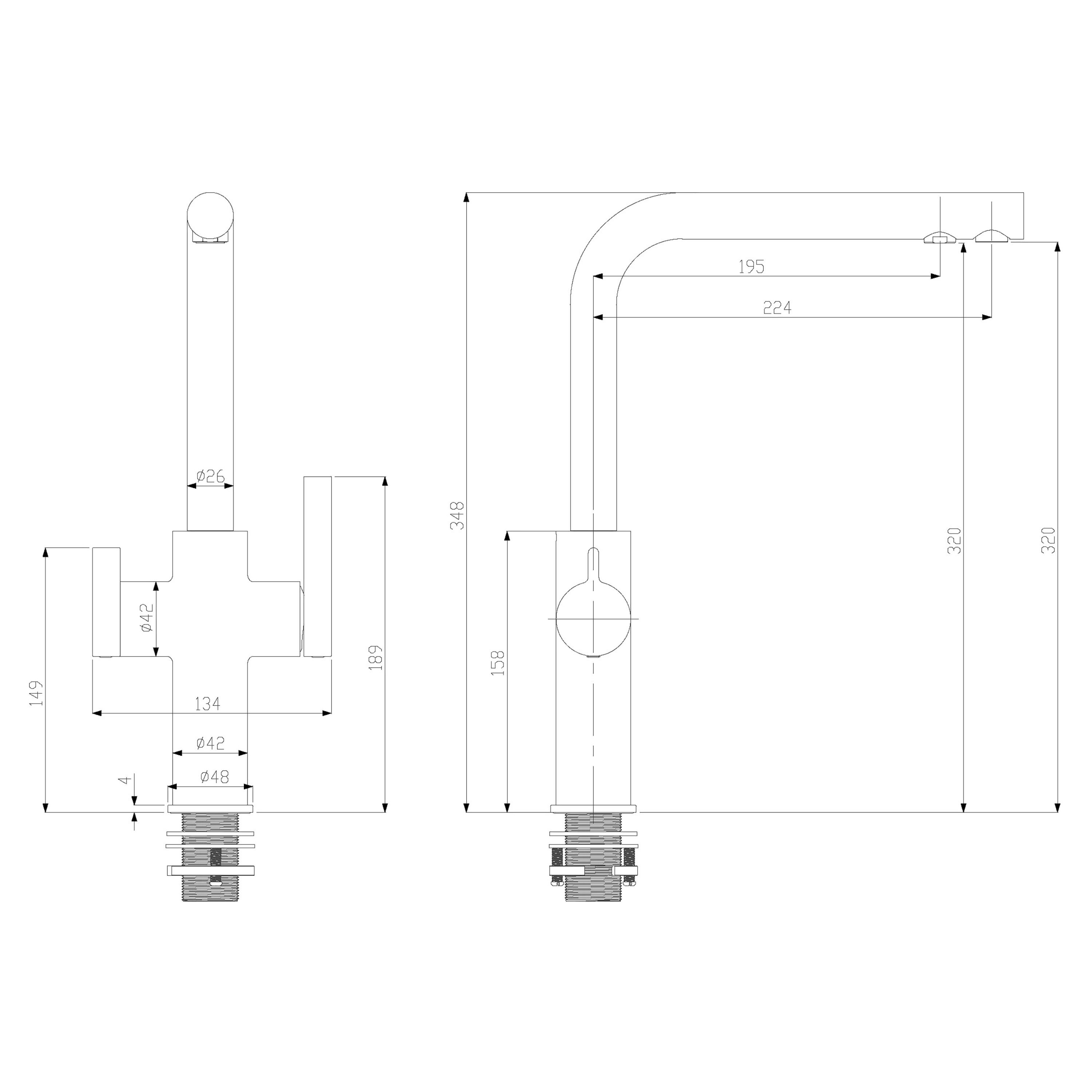

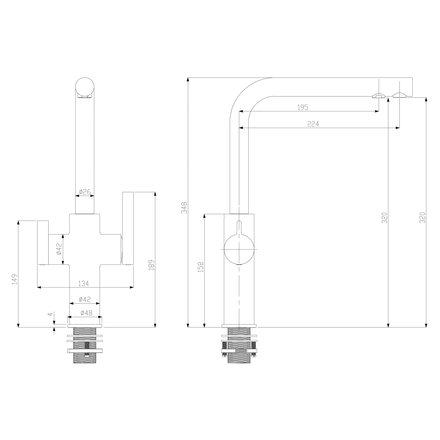

Dimensions and other information on the sink tap Alvito Furore Neo
| H x W x D: |
348 x 134 x 264 mm |
| Material: |
Brass |
| Surface: |
shiny chrome / matt black |
| Suitable for low pressure boilers: |
No |
| Length of the connection hoses: |
450 mm |
| Connection: |
3/8"AG |
| Outlet for the filterted water: |
separate perlator |
| Height of the outlet: |
320 mm |
| Distance outlet for filtered water - tap central axis: |
195 mm |
| Distance outlet for normal water - tap central axis: |
224 mm |
| Distance between outlets: |
29 mm |
| Diameter of the bore in the countertop: |
35 mm |
| Max. thickness of the countertop: |
40 mm |
