Alvito Furore Neo 3 way tap
Description
Alvito Furore Neo three way faucet
- Use filtered and unfiltered water separately but still from one tap.
- Separate valves and outlets for filtered and unfiltered water.
- The 4th way can optionally be connected to a carbonator system. (Additional hose is required!)
- Made in Italy: Very high quality workmanship and stylish design.
- This sink tap exists is made of chrome-plated brass
- Durable ceramic cartridge and 360° swiveling spout.
- Suitable for all under counter filters.
Installation
- Height of the Alvito Furore Neo tap: 385 mm (from the worktop).
- Height of the spout: 249 mm (from the worktop).
- For a maximum worktop thickness of 40 mm.
- Connection hoses: 450 mm. If necessary, these can be extended.

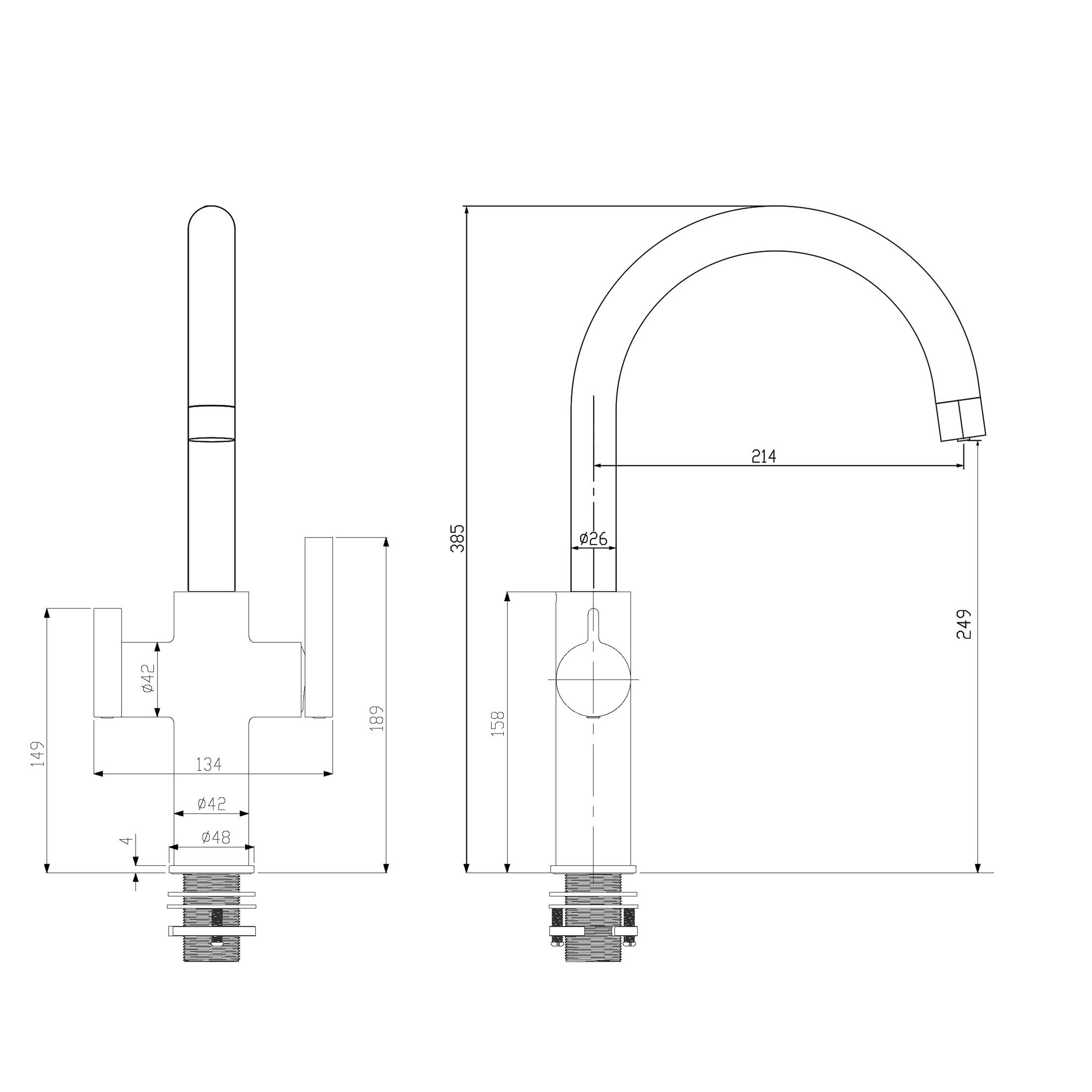

- For further information and exact dimensions please refer to the tab Characteristics.
Scope of delivery
A 3 way tap Alvito Furore Neo consisting of- a three-way faucet made of chrome-plated brass with ceramic valves
- one aerator
- Three 45 cm flexible hoses with 3/8" union nuts for connecting hot, cold and filter water
- an adapter to 1/4" hoses (quick connector)
- all components required for assembly
Characteristics
Characteristics
| Suitable for low pressure boilers: | No |
| Width: | 134 mm |
| Height: | 385 mm |
| Material: | Chrome-plated brass |
| Finish: | Shiny |
| Length of the hoses: | 450 mm |
| Connection: | 3/8" union nut |
| Outlet: | Separate |
| Height of the outlet: | 249 mm |
| Distance outlet for filtered water - tap central axis: | 214 mm |
| Distance outlet for normal water - tap central axis: | 214 mm |
| Distance between outlets: | 0 mm |
| Diameter of the bore in the countertop: | 34 - 39 mm |
| Max. thickness of the countertop: | 40 mm |
