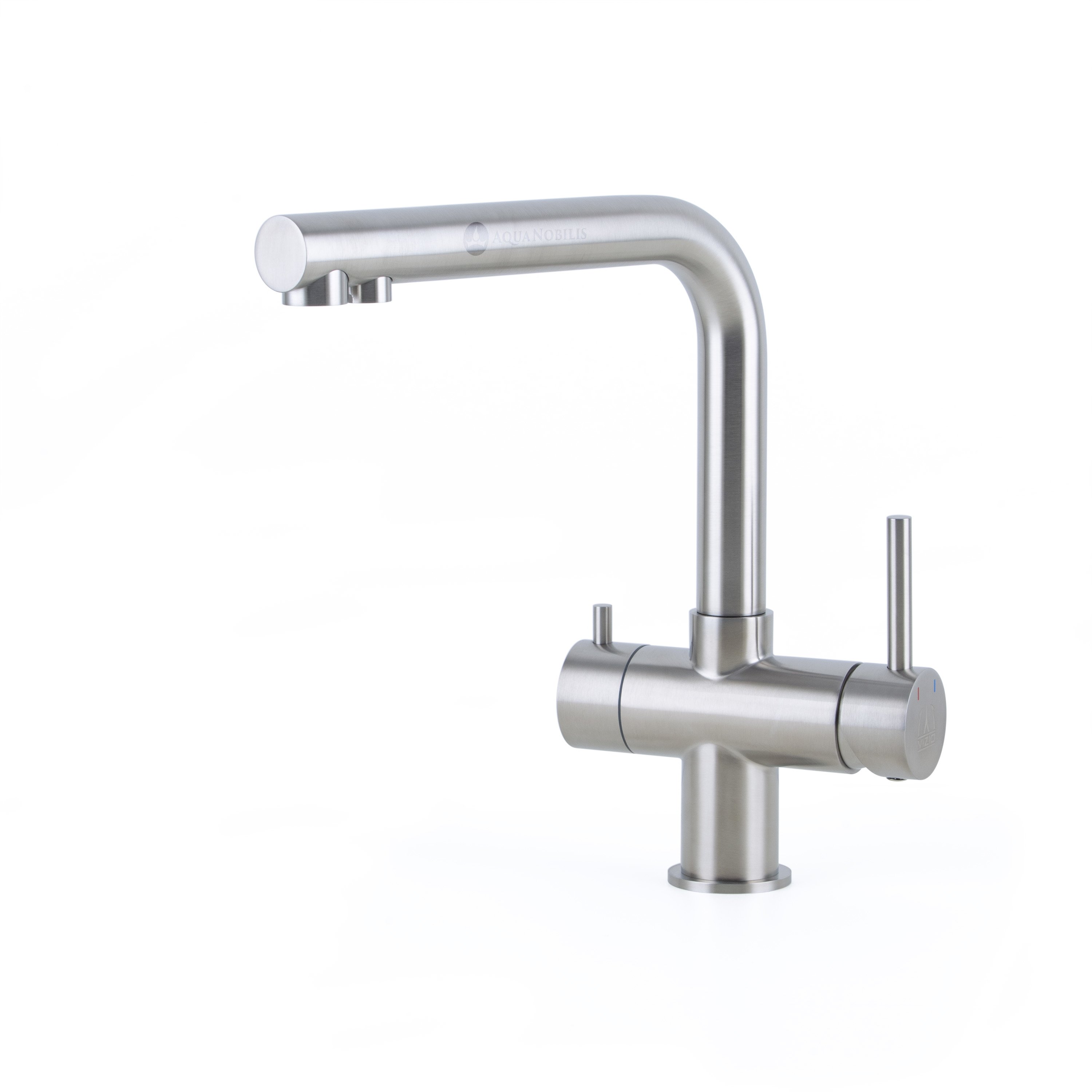

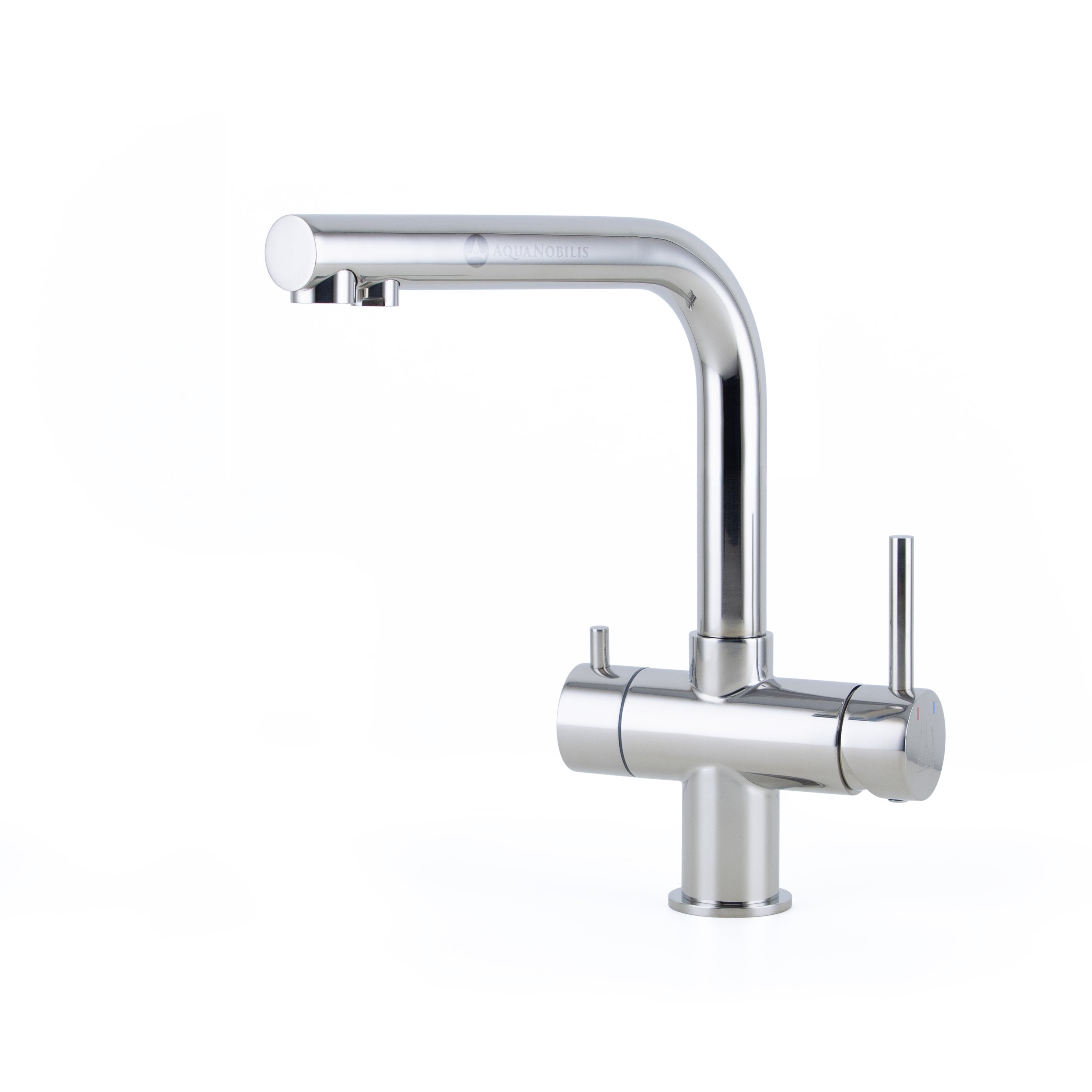

Alvito Atessa stainless steel 3 way tap, low
Description
Alvito Atessa stainless steel three way faucet, low
- Use service water (hot/cold) and filter water separately but still from one tap.
- Housing and outlet pipe are made entirely of high-quality AISI 316 stainless steel. (Therefore particularly suitable for reverse osmosis and carbonator systems).
- Made in Italy: Elegant and timeless design and excellent workmanship.
- Smooth-running spout that can be swiveled through 360°.
- Separate water supply of the filtered water to the outlet.
- Durable mixers made of ceramic.
- Suitable for all under-sink filters.
Installation

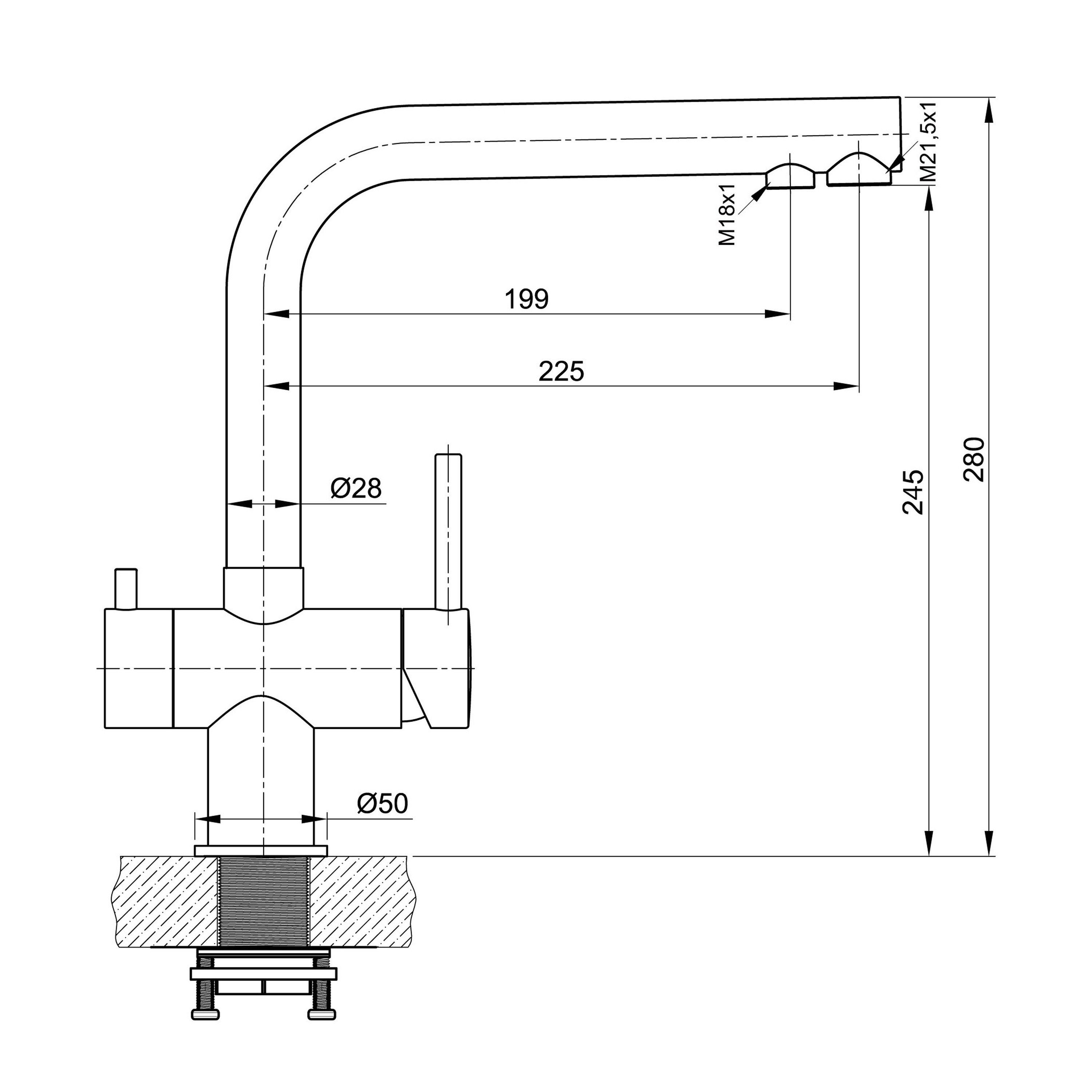

- Height of the Alvito Atessa (low) tap: 280 mm (from the worktop).
- Height of the spout: 245 mm (from the worktop).
- For a maximum worktop thickness of 47 mm.
- Connection hoses: 450 mm. If necessary, these can be extended.
- For further information and exact dimensions please refer to the tab Characteristics.
Available variants

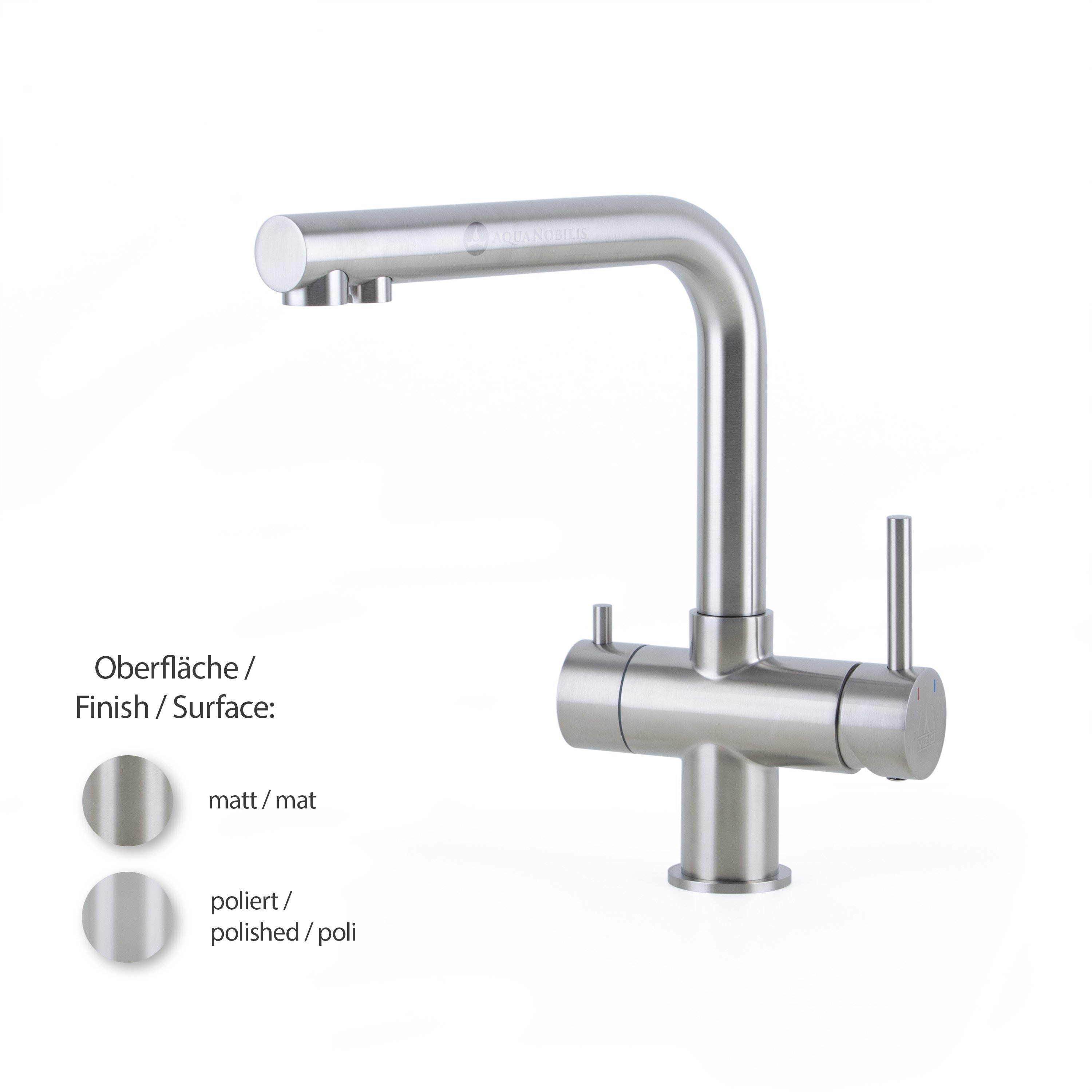

The Atessa (low) faucet is available in two surface finishes:Characteristics
Characteristics
| Suitable for low pressure boilers: | No |
| Width: | 150 mm |
| Height: | 280 mm |
| Depth: | 265 mm |
| Material: | Stainless steel |
| Finish: | Matt Polished |
| Length of the hoses: | 450 mm |
| Connection: | 3/8" union nut |
| Outlet: | Separate |
| Height of the outlet: | 245 mm |
| Distance outlet for filtered water - tap central axis: | 199 mm |
| Distance outlet for normal water - tap central axis: | 225 mm |
| Distance between outlets: | 26 mm |
| Diameter of the bore in the countertop: | 34 - 39 mm |
| Max. thickness of the countertop: | 47 mm |
