VARIO DUO Nitrate
Description
Basics
- Pollution-filtered drinking water, right from the water connection in your kitchen.
- The set includes a VARIO DUO filter housing with practical quick couplings, the mating hoses and fittings.
- The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
- Cartridge replacement is comfortable and easy with the quick couplings.
- Double effect: Clever combination of two different cartridge types.
- With the serial setup, the same water flows through both filter cartridges.
- The water is first freed from nitrate by the ion exchange resins.
- In a second step, occurs the pollution filtration inside the GFP Premium U-9 filter cartridge.
- The outstanding filtration results have been proven by many scientific assessments.
- Particularly suitable for regions with high contents of nitrate in the water.

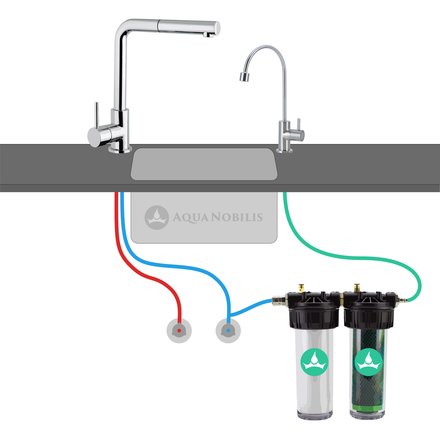

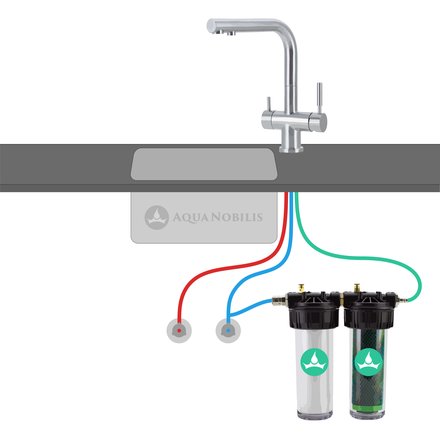

- Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
Compatible filter cartridges
- Will be delivered with two different filter cartridges:
- Cartridge 1: refill cartridge NF2 with reclaimable ion exchange resin - nitrate
- Cartridge 2: GFP Premium U-9:
- pure activated carbon filter cartridge
- filter mesh: 0.30 µm; flow rate: 2.5 l/min (at 4 bar)
- very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
- provides the highest protection against bacteria (see assessments)
- Compatible to all 9 3/4" filter cartridges.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
Installation
- The filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The unit can be mounted to the wall or simply positioned without attaching.
- Dimensions without hoses (W x H x D): 33 x 35 x 16 cm3. With hoses 46 cm wide.
- The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
- TIP: When installing the ball valve directly at the angle valve tee, the filter unit plus hoses is only 42.5 cm wide.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Videos
Product videos
Scope of delivery
Scope of delivery
This VARIO DUO Nitrate set contains the following parts
- one Carbonit VARIO-HP DK basic module (serial) with device key

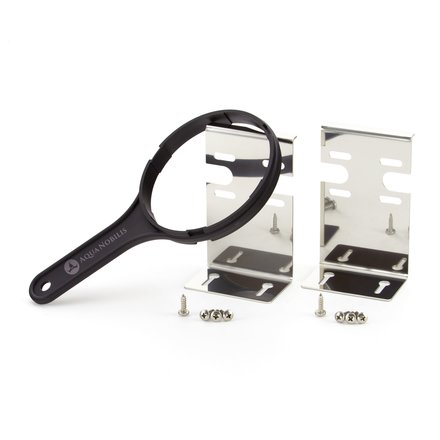

- two Carbonit VARIO-HP wall mounts stainless steel inlcuding screws to mount them on the device heads
- one VARIO connection kit coupling DN 7,2 (nickel-plated)

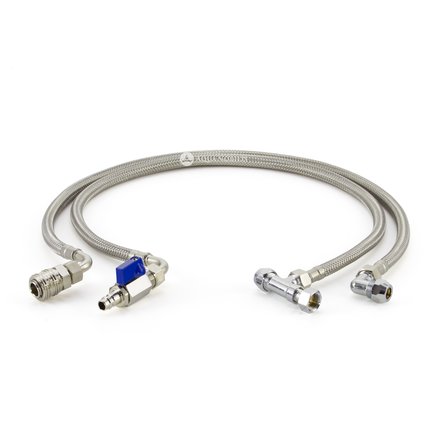

- one inlet hose kit containing:
- one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
- with an angle valve tee (3/8") on one side
- and a stainless steel ball valve with nipple (DN 7,2) on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
- with a quick coupling (DN 7,2) on one side
- and one 90° compression fitting (10 mm) on the other side

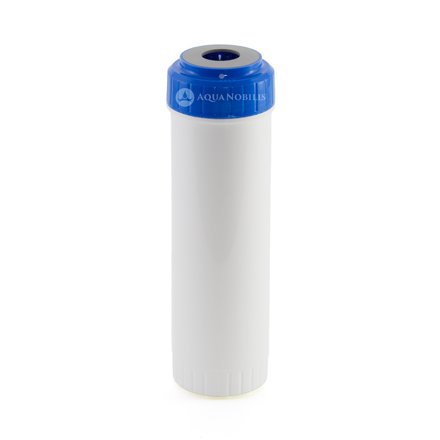

- one Carbonit Refill cartridge NF2 filter cartridge

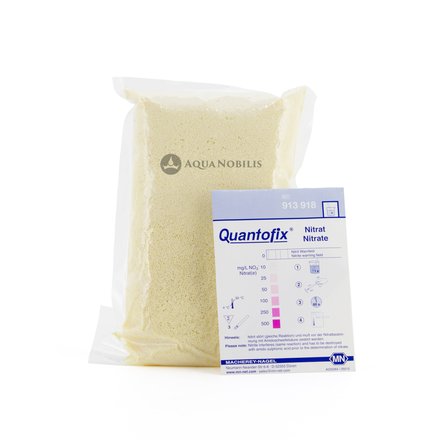

- one pack of Carbonit nitrate ion exchange resins

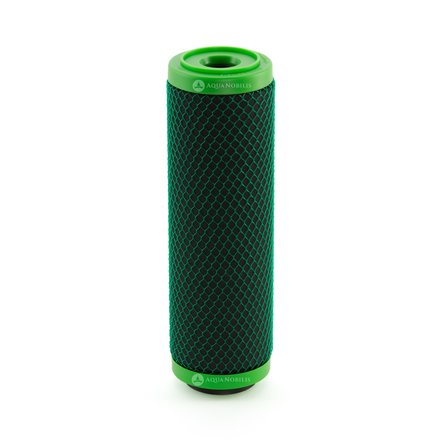

- one Carbonit GFP Premium U-9 filter cartridge
- and nitrate test sticks
Files
Files
Characteristics
Characteristics
Width: | 33 cm |
Height: | 35 cm |
Depth: | 16 cm |
Length of the filter cartridge: | 248 mm (9 3/4") |
Filter mesh (µm): | 0.30 |
Adsorptive retention rate (Polar pesticides, medical residues, bacteria, ...): | >99% |
Flow rate (l/min at 4 bar): | 2.5 |
Adsorptive retention rate (Lead, Copper): | >95% |
Adsorptive retention capacity: | 13 m³ |
Adsorptive retention rate (Chlorine): | >99% |
Particle retention capacity: | 10 m³ |
Max. useful life of the filter cartridge: | 6 months |
Blocks bacteria: | Yes |
Contains: | Activated carbon Ion-exchange resin |
Material: | Grilamid TR 90 POM (Hostaform C 2571) |
Length of the hoses: | 80 cm |
Connection: | 3/8" union nut Coupling DN 7.2 Compression fitting (10 mm) |
