Carbonit VARIO DUO Lime

Item number: 120VHP-DK-AN2


529,00 €

including 17% VAT., no shipping costs

Old price: 549,00 €
5 pc. In stock

Shipping time: 1 - 3 workdays

pc.


Description

Carbonit VARIO DUO Lime under counter water filter

  • Pollution-filtered drinking water, right from the water connection in your kitchen.
  • The set includes a VARIO DUO filter housing with practical quick couplings, the mating hoses and fittings.
  • The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
  • Cartridge replacement is comfortable and easy with the quick couplings.
  • Double effect: Clever combination of two different cartridge types.
  • With the serial setup, the same water flows through both filter cartridges.
  • The water is first decalcified by the ion exchange resins.
  • In a second step, occurs the pollution filtration inside the GFP Premium U-9 filter cartridge.
  • The outstanding filtration results have been proven by many scientific assessments.
  • More pleasure and less calcium deposition. Decalcification level can be determined individually.

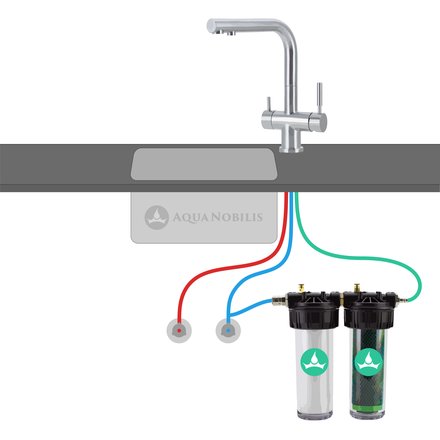

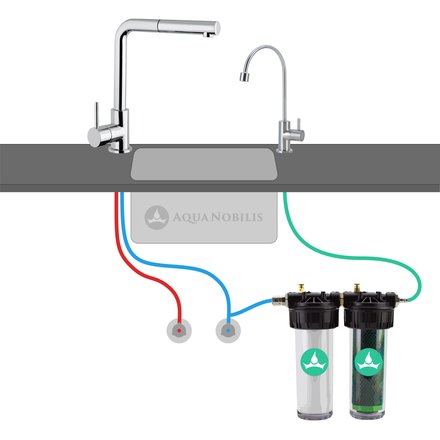

  • Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.

Compatible filter cartridges

  • The Carbonit VARIO DUO Lime will be delivered with two different filter cartridges:

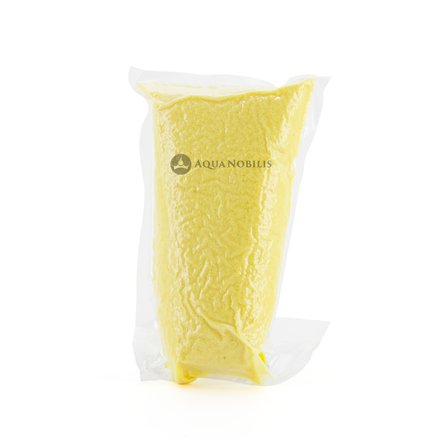

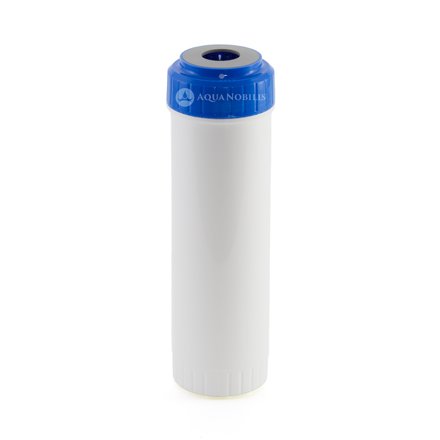

  • Cartridge 1: refill cartridge NF2 with reclaimable ion exchange resin - lime (carbonate hardness)

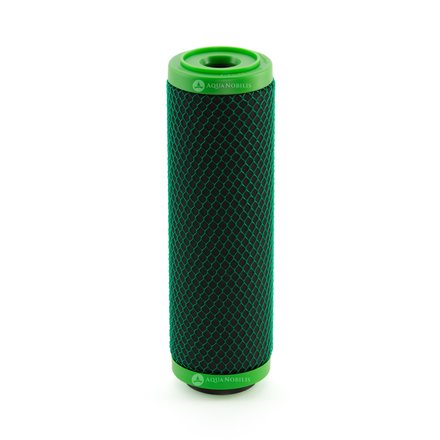

  • Cartridge 2: GFP Premium U-9:
    • pure activated carbon filter cartridge
    • filter mesh: 0.30 µm; flow rate: 1.5 l/min (at 4 bar)
    • very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
    • provides the highest protection against bacteria (see assessments)
  • Compatible to all 9 3/4" filter cartridges.
  • For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
  • Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.

Installation

  • The VARIO DUO Lime filter unit can be installed at any standard water connection in the kitchen or in the bathroom.

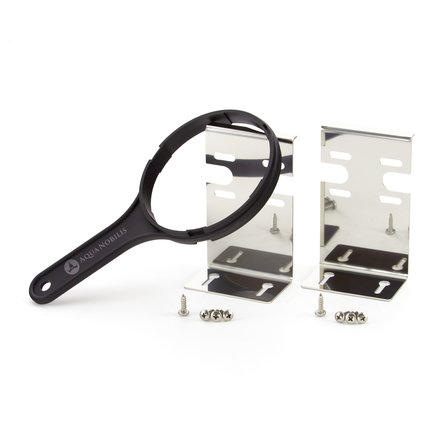

  • The unit can be mounted to the wall or simply positioned without attaching.
  • Dimensions without hoses (W x H x D): 33 x 35 x 16 cm3. With hoses 46 cm wide.
  • The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
  • TIP: When installing the ball valve directly at the angle valve tee, the filter unit plus hoses is only 42.5 cm wide.

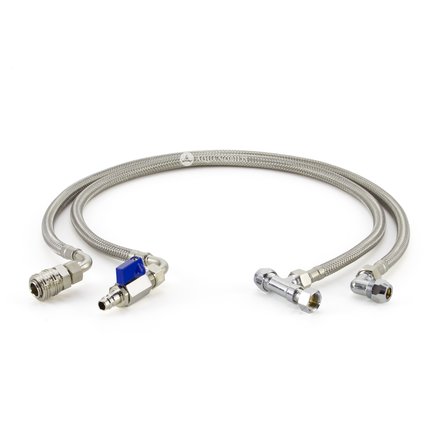

  • Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
  • Only to be used with cold water and must be protected against freezing.

Dimensions and other information on the Carbonit VARIO DUO Lime filter

Type of connection: Under counter
H x B x T: 340 x 330 x 150 mm
Material: Grilamid TR 90, POM (Hostaform C 2571)
Length of the filter cartridge: 248 mm | 9 3/4"
Filter mesh: 0,30 µm
Flow rate (at 4 bar): approx. 1,5 l/min
Adsorptive retention rate: Polar pesticides, medical residues, bacteria: > 99%
Adsorptive retention rate: Chlorine: > 99%
Adsorptive retention rate: Lead, Copper: > 95%
Blocks bacteria: Yes
Adsorptive retention capacity: 13 m3
Particle retention capacity: 10 m3
Max. useful life of the filter cartridge: 6 months
Suitable for low pressure boilers: Yes
Length of the connection hoses: approx. 800 mm
Connection: 3/8" union nut, Compression fitting (10 mm), NW 7,2 Quick couplings

Videos

Product videos



Scope of delivery

Scope of delivery

This VARIO DUO Lime set contains the following parts
