Carbonit VARIO-HP DK basic module (serial)
Description
Carbonit VARIO-HP DK Basic Module (serial)
- Set consisting of two, serially connected, housings and a key.
- Wall mounts, hoses and filter cartridges are not enclosed.
- Conceived for multi-stage filtration.
- Ideal for do-it-yourself people and talented craftsmen, who would like to create their individual filter system.
Compatible cartridges
- The Carbonit VARIO-HP DK Basic Module (serial) is delivered without filter cartridges.
- Compatible to all 9 3/4" filter cartridges.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
- The housings have female 3/4-inch inlet and outlet threads.
- There may be a need for a connection kit, as well as compatible hoses.
- You may want to select and order two wall mounts as needed.
- Only to be used with cold water and must be protected against freezing.
Dimensions and other information on the Carbonit VARIO-HP DK basic module (serial)
| Type of connection: | Under counter |
|---|---|
| H x B x T: | 340 x 255 x 120 mm |
| Material: | Grilamid TR 90, POM (Hostaform C 2571) |
| Length of the filter cartridge: | 248 mm | 9 3/4" |
| Flow rate (at 4 bar): | approx. 22 l/min |
| Suitable for low pressure boilers: | Yes |
| Connection: | 3/8" internal threats |
Scope of delivery
Scope of delivery
This Carbonit VARIO-HP DK basic module (serial) contains the following parts
- two Carbonit VARIO-HP filter housings that are connected to each other (in serial) by a 3/4" double nipple

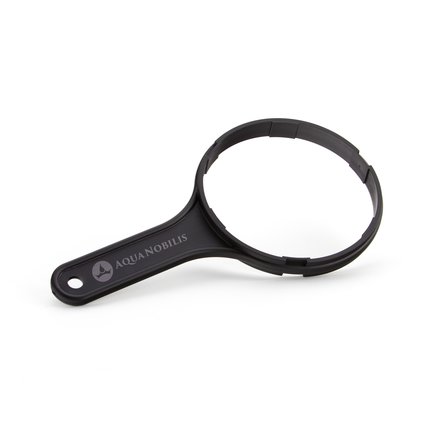

- one Carbonit VARIO-HP device key
