VARIO-HP Basic
Description
Basics
- Water filtration in accordance with individual needs.
- The set includes a VARIO-HP filter housing with practical quick couplings, the mating hoses and fittings.
- The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
- Cartridge replacement is comfortable and easy with the quick couplings.
- Set is suitable for the filtration of the entire cold water flow at the sink tap, aswell as for the water withdrawal via a separate discharge.
Compatible cartridges
- The basic set is delivered without filter cartridge.
- Compatible to all 9 3/4" filter cartridges.
- For the filtration of the entire water flow at the withdrawal point, we suggest to select cartridges with a minimum flow rate of 7 l/min.
- For the use of cartridges with reduced flow rate, we suggest water withdrawal via a separate sink tap or three-way sink tap.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
Installation
- The filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The unit can be mounted to the wall or simply positioned without attaching.

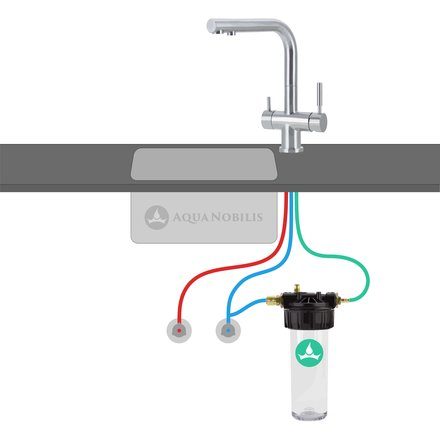

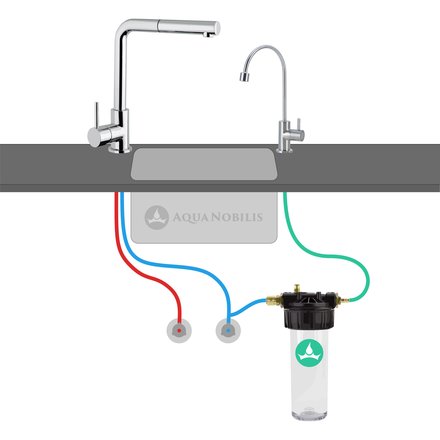

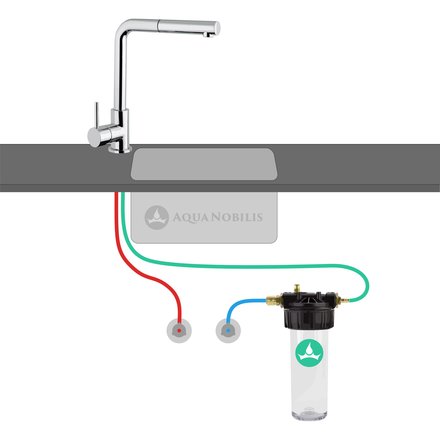

- The filtration system can be connected to a standard two-way sink tap, a separate sink tap, as well as a three-way sink tap.
- The system is delivered with an angle T-valve (3/8") and a 90° angle with compression connection (10 mm).
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Videos
Product videos
Scope of delivery
Scope of delivery
This Carbonit VARIO-HP Basic contains the following parts
- one Carbonit VARIO-HP basic module with device key

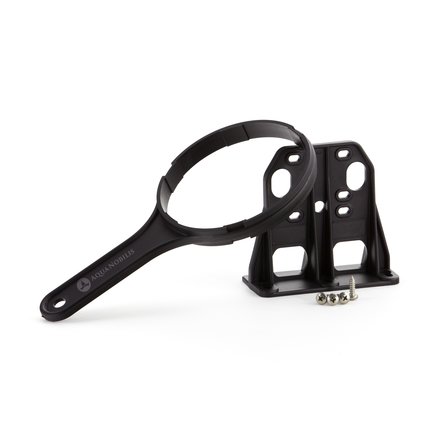

- one Carbonit VARIO-HP wall mount plastic inlcuding screws to mount it on the device head
- one Carbonit VARIO connection kit coupling DN 7,2

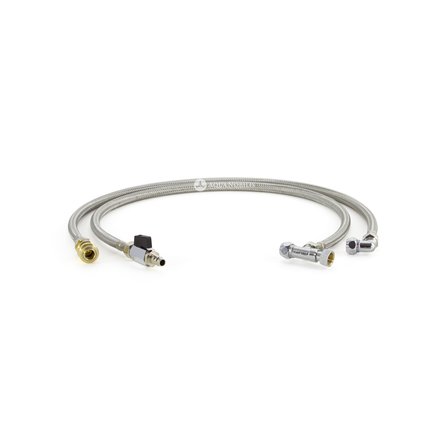

- one inlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with an angle valve tee (3/8") on one side
- and a ball valve with nipple (DN 7,2) on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with a quick coupling (DN 7,2) on one side
- and one 90° compression fitting (10 mm) on the other side
Files
Files
Characteristics
Characteristics
Width: | 20 cm |
Height: | 34 cm |
Depth: | 15 cm |
Length of the filter cartridge: | 248 mm (9 3/4") |
Flow rate (l/min at 4 bar): | 22 |
Material: | Grilamid TR 90 POM (Hostaform C 2571) |
Length of the hoses: | 80 cm |
Connection: | 3/8" union nut Coupling DN 7.2 |
