DUO-HP Business

Item number: 115DUOHPP6



599,00 €

including 17% VAT., no shipping costs

Old price: 635,00 €
1 pc. In stock

Shipping time: 1 - 3 workdays

pc.


Description

Basics

  • With the parallel filter arrangement, both cartridges see the same water flow.
  • Doubling of the max flow rate and retention capacity compared to e.g. VARIO-HP units.
  • Set is suitable for the filtration of the entire cold water flow at the sink tap, aswell as for the water withdrawal via a separate discharge.
  • Optimized filtering performance by using two powerful GFP Premium-9 filter cartridges.
  • The outstanding filtration results have been proven by many scientific assessments.
  • Important improvement of retention rates at almost the same flow rate compared to the DUO-HP classic set.
  • The high-quality and massive base, made from polyoxymethylen, is manufactured entirely in Germany.
  • No drilling: The filter unit can be located decently under the counter, avoiding any compromise on kitchen design.
  • Cartridge replacement is comfortable and easy with the quick couplings.

Compatible filter cartridges

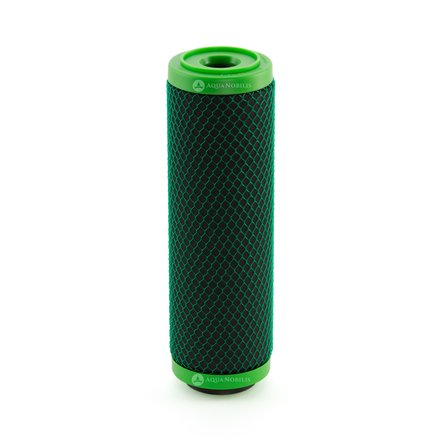

  • Will be delivered with two GFP Premium-9 filter cartridges:
    • pure activated carbon filter cartridges
    • filter mesh: 0,40 µm; flow rate: 2 * 3.5 = 7 l/min (at 4 bar)
    • very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
    • provides the highest protection against bacteria (see assessments)
  • Compatible to all 9 3/4" filter cartridges. Please use two cartridges of the same type.
  • To filter the entire water flow at the sink tap, the combined flow rate of the cartridges must be minimum 7 l/min.
  • For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
  • Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.

Installation

Installation

  • The filter unit can be installed, without costly retrofitting, at any standard water connection in the kitchen or in the bathroom.

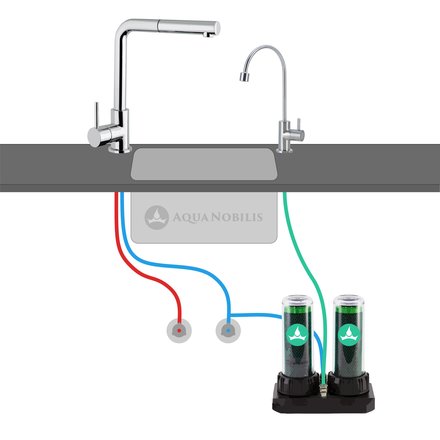

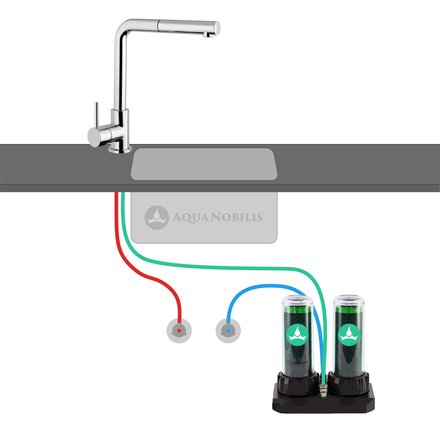

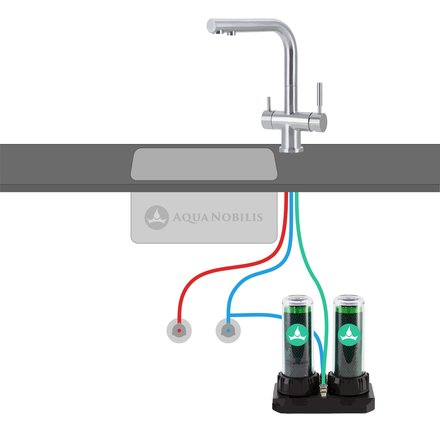

  • The filtration system can be connected to a standard two-way sink tap, a separate sink tap, as well as a three-way sink tap.
  • Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
  • Only to be used with cold water and must be protected against freezing.

Scope of delivery

Scope of delivery

This Carbonit DUO-HP Business set contains the following parts
  • one Carbonit DUO-HP (parallel) basic module with two quick couplings (DN 7,2)

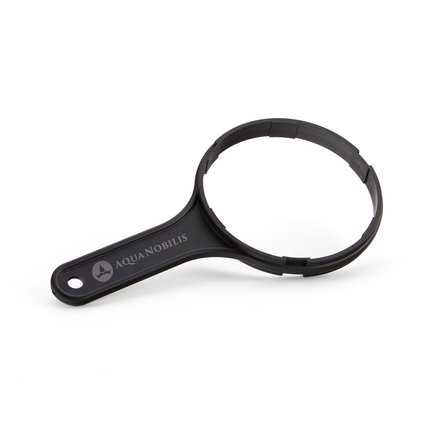

  • one device key

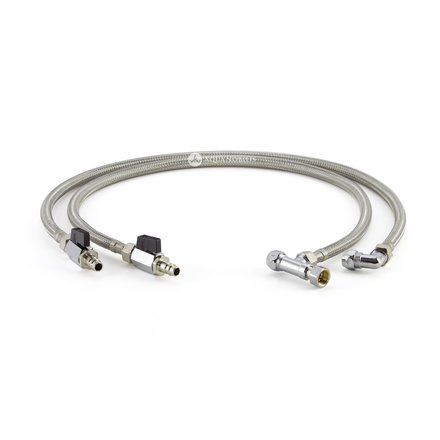

  • one inlet hose kit containing:
    • one flexible hose (approx. 80 cm long with straight connections)
    • with an angle valve tee (3/8") on one side
    • and a ball valve with nipple (DN 7,2) on the other side
  • one outlet hose kit containing:
    • one flexible hose (approx. 80 cm long with straight connections)
    • with a ball valve with nipple (DN 7,2) on one side
    • and one 90° compression fitting (10 mm) on the other side
  • two Carbonit GFP Premium-9 filter cartridges

Files

Characteristics

Characteristics

Length of the filter cartridge: 248 mm (9 3/4")
Filter mesh: 0.40 µm
Flow rate (at 4 bar): 7 l/min
Adsorptive retention rate (Polar pesticides,
medical residues, bacteria, ...):
>99%
Adsorptive retention rate (Chlorine): >99%
Adsorptive retention rate (Lead, Copper): >93%
Adsorptive retention capacity: 31 m³
Particle retention capacity: 25 m³
Max. useful life of the filter cartridge: 6 months
Blocks bacteria: Yes
Contains: Activated carbon
Width: 280 mm
Depth: 175 mm
Height: 305 mm
Length of the hoses: 80 cm
Material: Grilamid TR 90 POM (Hostaform C 2571)
Connection: 3/8" union nut Compression fitting (10 mm)
