Carbonit DUO-HP Special
Description
Carbonit DUO-HP Special under counter water filter
- Double effect: Clever combination of two different cartridge types.
- With the serial setup, the same water flows through both filter cartridges.
- In a first step, the clouding particles are removed by the textile VFS prefilter (1 µm) cartridge.
- In a second step, occurs the pollution filtration inside the NFP Premium-9 filter cartridge.
- The outstanding filtration results have been proven by many scientific assessments.
- The recommended replacement interval (6 months) of the activated carbon cartridge can be better utilized.
- No premature filter clogging and more efficient filter performance.
- Recommended for old water pipes and high particle content and clouding exposure .

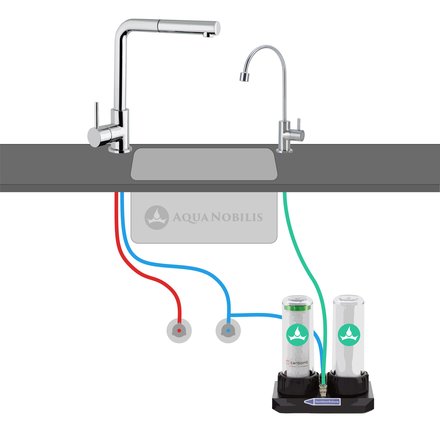

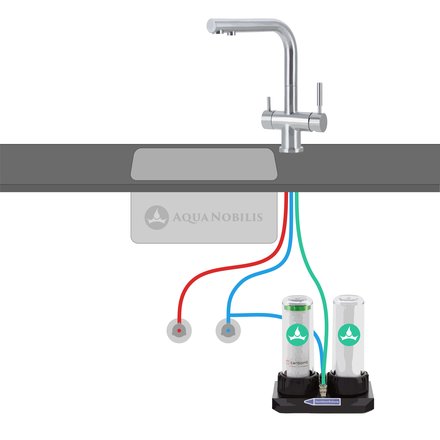

- Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
- The high-quality and massive base, made from polyoxymethylen, is manufactured entirely in Germany.
- No drilling: The filter unit can be located decently under the counter, avoiding any compromise on kitchen design.
- Cartridge replacement is comfortable and easy with the quick couplings.
Compatible filter cartridges
- The Carbonit DUO-HP Special will be delivered with two different filter cartridges:
- Cartridge 1: VFS prefilter:
- mechanical removal of particles and clouding
- filter mesh: 1 µm

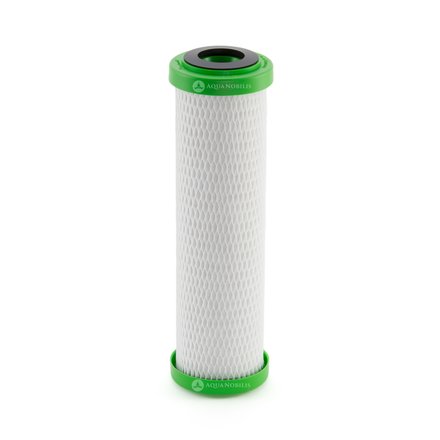

- Cartridge 2: NFP Premium-9:
- pure activated carbon filter cartridge
- filter mesh: 0.45 µm; flow rate: 2.5 l/min (at 4 bar)
- very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
- provides the highest protection against bacteria (see assessments)
- Compatible to all 9 3/4" filter cartridges.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
- The DUO-HP Special filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Dimensions and other information on the Carbonit DUO-HP Special filter
| Type of connection: | Under counter |
|---|---|
| H x B x T: | 305 x 280 x 175 mm |
| Material: | Grilamid TR 90, POM (Hostaform C 2571) |
| Length of the filter cartridge: | 248 mm | 9 3/4" |
| Filter mesh: | 0,45 µm, 1 µm |
| Flow rate (at 4 bar): | approx. 2,5 l/min |
| Adsorptive retention rate: Polar pesticides, medical residues, bacteria: | > 99% |
| Adsorptive retention rate: Chlorine: | > 99% |
| Adsorptive retention rate: Lead, Copper: | > 90% |
| Blocks bacteria: | Yes |
| Adsorptive retention capacity: | 20 m3 |
| Particle retention capacity: | 20 m3 |
| Max. useful life of the filter cartridge: | 6 months |
| Suitable for low pressure boilers: | Yes |
| Length of the connection hoses: | approx. 800 mm |
| Connection: | 3/8" union nut, Compression fitting (10 mm), NW 7,2 Quick couplings |
Scope of delivery
Scope of delivery
This Carbonit DUO-HP Special set contains the following parts
- one Carbonit DUO-HP (serial) basic module with two quick couplings (DN 7,2)
- one device key

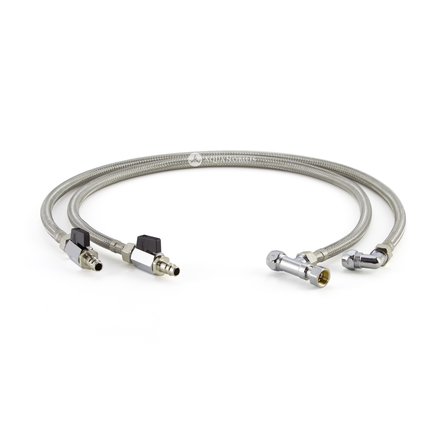

- one inlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with an angle valve tee (3/8") on one side
- and a ball valve with nipple (DN 7,2) on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with a ball valve with nipple (DN 7,2) on one side
- and one 90° compression fitting (10 mm) on the other side
- one Carbonit VFS prefilter 1 µm
- one Carbonit NFP Premium-9 filter cartridge
