Carbonit DUO-HP Puro
Description
Carbonit DUO-HP Puro under counter water filter
- With the parallel filter arrangement, both cartridges see the same water flow.
- Doubling of the max flow rate and retention capacity compared to e.g. VARIO-HP units.
- Is conceived for the filtration of the entire cold water flow at the tap.
- The existing sink tap can still be used and there is no need to install a new mounting.
- The high-quality and massive base, made from polyoxymethylen, is manufactured entirely in Germany.
- No drilling: The filter unit can be located decently under the counter, avoiding any compromise on kitchen design.
- Cartridge replacement is comfortable and easy with the quick couplings.
Compatible filter cartridges

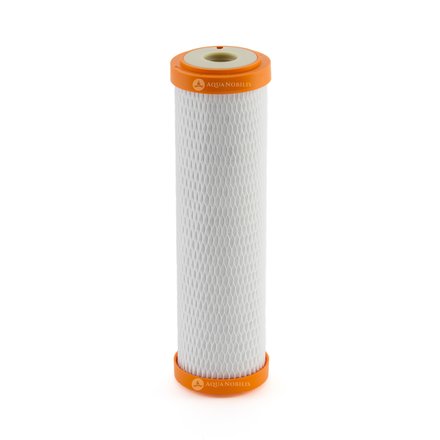

- The Carbonit DUO-HP Puro will be delivered with two IFP Puro filter cartridges:
- combination of activated carbon and a membrane
- filter mesh: 8 µm (activated carbon) and 0.15 µm (membrane); flow rate: 2 * 7 = 14 l/min (at 4 bar)
- average retention rates for heavy metals, pesticides, medical residues and chlorine
- provides the highest protection against bacteria (see characteristics)
- Compatible to all 9 3/4" filter cartridges. Please use two cartridges of the same type.
- To filter the entire water flow at the sink tap, the combined flow rate of the cartridges must be minimum 7 l/min.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation

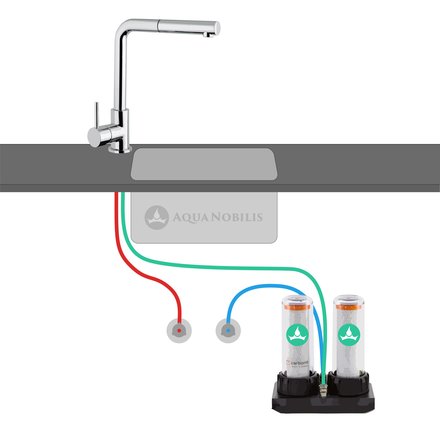

- The DUO-HP Puro filter unit can be installed, without costly retrofitting, at any standard water connection in the kitchen or in the bathroom.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- For filtration of the entire cold water flow at the sink tap: No need to replace your existing sink tap.
- Optionally, you may install a separate sink tap for the filtered water: angle T-valve is included.
- Only to be used with cold water and must be protected against freezing.
Dimensions and other information on the Carbonit DUO-HP Puro filter
| Type of connection: | Under counter |
|---|---|
| H x B x T: | 305 x 280 x 175 mm |
| Material: | Grilamid TR 90, POM (Hostaform C 2571) |
| Length of the filter cartridge: | 248 mm | 9 3/4" |
| Filter mesh: | 0,15 µm, 8 µm |
| Flow rate (at 4 bar): | approx. 14 l/min |
| Adsorptive retention rate: Polar pesticides, medical residues, bacteria: | > 66% |
| Adsorptive retention rate: Chlorine: | > 81% |
| Adsorptive retention rate: Lead, Copper: | > 59% |
| Blocks bacteria: | Yes |
| Adsorptive retention capacity: | 22 m3 |
| Particle retention capacity: | 10 m3 |
| Max. useful life of the filter cartridge: | 6 months |
| Suitable for low pressure boilers: | Yes |
| Length of the connection hoses: | approx. 800 mm |
| Connection: | 3/8" union nut, Compression fitting (10 mm), NW 7,2 Quick couplings |
Scope of delivery
Scope of delivery
This Carbonit DUO-HP Puro set contains the following parts
- one Carbonit DUO-HP (parallel) basic module with two quick couplings (DN 7,2)

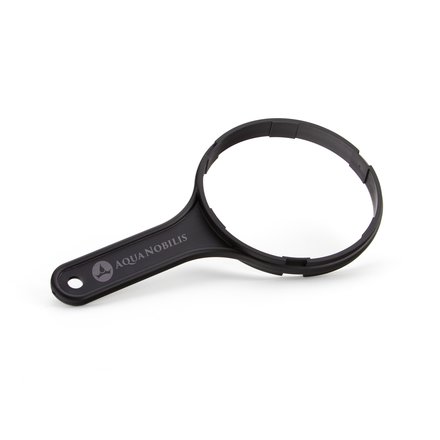

- one device key

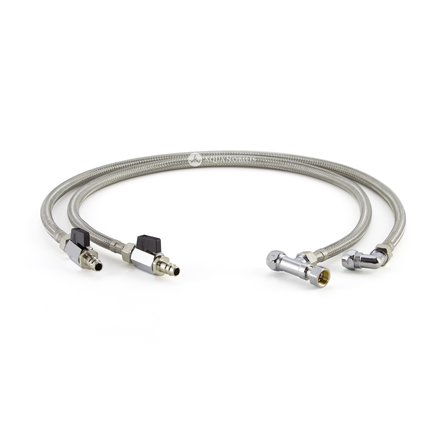

- one inlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with an angle valve tee (3/8") on one side
- and a ball valve with nipple (DN 7,2) on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with a ball valve with nipple (DN 7,2) on one side
- and one 90° compression fitting (10 mm) on the other side
- two Carbonit IFP Puro filter cartridges
User manual
