Carbonit CITO-QC Universal
Description
Carbonit CITO-QC Universal under counter water filter
- The Carbonit CITO-QC is the further development of the confirmed VARIO-HP filter housing.
- Filter replacement even simpler: Thanks to the QuickConnect (QC) bayonet coupling the filter-socket can be easily dismounted as a whole.
- The head of the filter-assembly itself remains permanently attached to the wall, no hoses have to be touched.
- The filer-socket can be opened and the filter cartridge can be replaced conveniently in the sink using the enclosed keys.

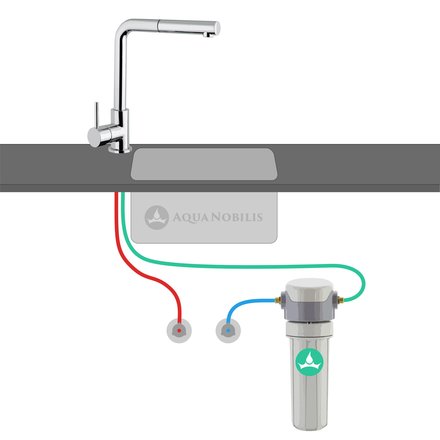

- The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
- Is conceived for the filtration of the entire cold water flow at the tap.
- There is no need for a special, additional sink tap.
Compatible filter cartridges

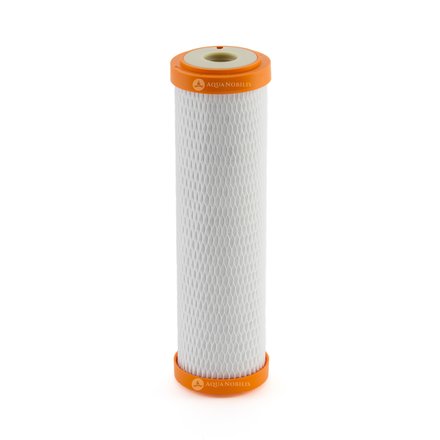

- The Carbonit CITO-QC Universal will be delivered with a IFP Puro filter cartridge:
- combination of activated carbon and a membrane
- filter mesh: 8 µm (activated carbon) and 0.15 µm (membrane); flow rate: 7 l/min (at 4 bar)
- average retention rates for heavy metals, pesticides, medical residues and chlorine
- provides the highest protection against bacteria (see characteristics)
- Basically compatible to all 9 3/4" filter cartridges.
- As the entire water flow at the withdrawal point is filtered, one should select only cartridges with a minimum flow rate of 7 l/min.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
- The CITO-QC Universal filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The unit is to be permanently installed to the wall.
- Dimensions without hoses (W x H x D): 17 x 38.5 x 14.5 cm3. CAUTION: Filter cartridge replacement requires a free space of 5 cm below the installed unit.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Scope of delivery
Scope of delivery

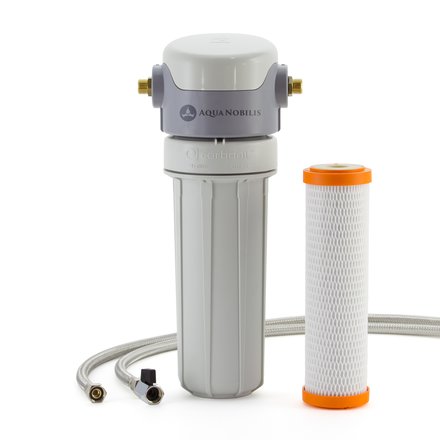

This Carbonit CITO-QC Universal set contains the following parts
- one Carbonit CITO-QC basic module containing:
- one CITO-QC device head with 3/8" connections and the Quick Connect filter cup

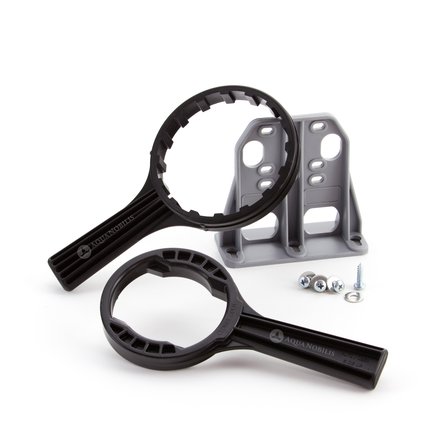

- one plastic wall mount inlcuding screws to mount it on the device head
- two device keys
- one inlet hose kit containing:
- one flexible hose (approx. 80 cm with straight connections)
- with one 90° compression fitting (10 mm) on one side
- and a ball valve on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm with straight connections)
- with a union nut (3/8") on one side
- and one 90° compression fitting (10 mm) on the other side
- one Carbonit IFP Puro filter cartridge
Files
Characteristics
Characteristics
Type of connection: | Under counter - existing tap |
Width: | 170 mm |
Height: | 385 mm |
Depth: | 145 mm |
Length of the filter cartridge: | 248 mm (9 3/4") |
Filter mesh (µm): | 0.15 8 |
Adsorptive retention rate (Polar pesticides, medical residues, bacteria, ...): | 66% |
Flow rate (l/min at 4 bar): | 7 |
Adsorptive retention rate (Lead, Copper): | 59% |
Adsorptive retention capacity: | 11 m³ |
Adsorptive retention rate (Chlorine): | 81% |
Particle retention capacity: | 5 m³ |
Max. useful life of the filter cartridge: | 6 months |
Blocks bacteria: | Yes |
Contains: | Activated carbon Membrane |
Material: | PP |
Length of the hoses: | 800 mm |
Connection: | 3/8" union nut Compression fitting (10 mm) |
