Carbonit CITO DUO Nitrate

Item number: 120QC-DK-AN3


569,00 €

including 16% VAT., no shipping costs

2 pc. In stock

Shipping time: 1 - 3 workdays

pc.


Description

Carbonit CITO DUO Nitrate under counter water filter

  • The Carbonit CITO-QC is the further development of the confirmed VARIO-HP filter housing.
  • The outstanding filtration results have been proven by many scientific assessments.
  • Filter replacement even simpler: Thanks to the QuickConnect (QC) bayonet coupling the filter-socket can be easily dismounted as a whole.
  • The head of the filter-assembly itself remains permanently attached to the wall, no hoses have to be touched.
  • The filer-socket can be opened and the filter cartridge can be replaced conveniently in the sink using the enclosed keys.
  • The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
  • Double effect: Clever combination of two different cartridge types.
  • With the serial setup, the same water flows through both filter cartridges.
  • The water is first freed from nitrate by the ion exchange resins.
  • In a second step, occurs the pollution filtration inside the GFP Premium U-9 filter cartridge.
  • Particularly suitable for regions with high contents of nitrate in the water.

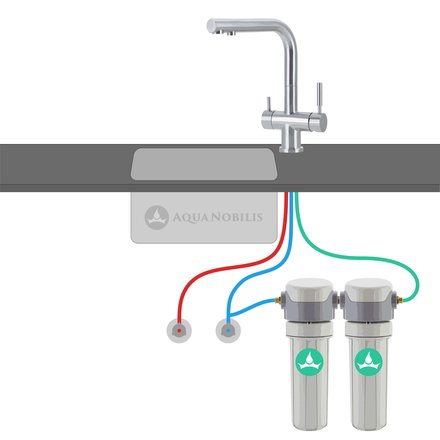

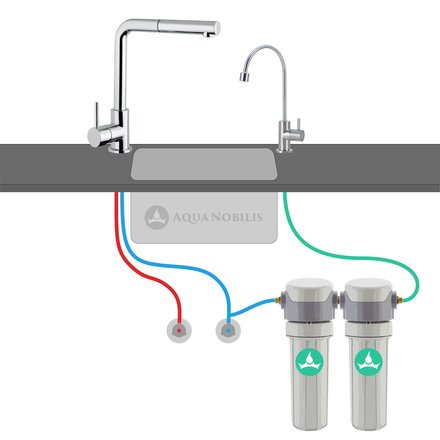

  • Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.

Compatible filter cartridges

  • The Carbonit CITO DUO Nitrate will be delivered with two different filter cartridges:

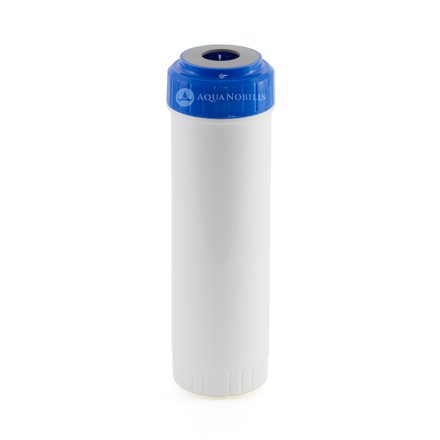

  • Cartridge 1: refill cartridge NF2 with reclaimable ion exchange resin - nitrate

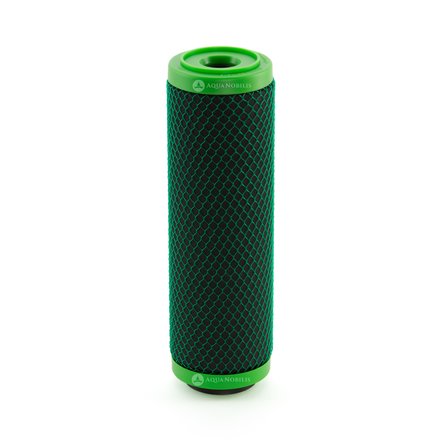

  • Cartridge 2: GFP Premium U-9:
    • pure activated carbon filter cartridge
    • filter mesh: 0.30 µm; flow rate: 1.5 l/min (at 4 bar)
    • very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
    • provides the highest protection against bacteria (see assessments)
  • Compatible to all 9 3/4" filter cartridges.
  • For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
  • Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.

Installation

  • The CITO DUO Nitrate filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
  • The unit is to be permanently installed to the wall.
  • Dimensions without hoses (W x H x D): 31.5 x 38.5 x 14.5 cm3. With hoses 41 cm wide. CAUTION: Filter cartridge replacement requires a free space of 5 cm below the installed unit.
  • The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
  • TIP: When installing the ball valve directly at the angle valve tee, the filter unit plus hoses is only 37.5 cm wide.
  • Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
  • Only to be used with cold water and must be protected against freezing.

Scope of delivery

Scope of delivery

This CITO DUO Nitrate set contains the following parts
  • two Carbonit CITO-QC basic modules containing each:
    • one CITO-QC device head with 3/8" connections and the Quick Connect filter cup

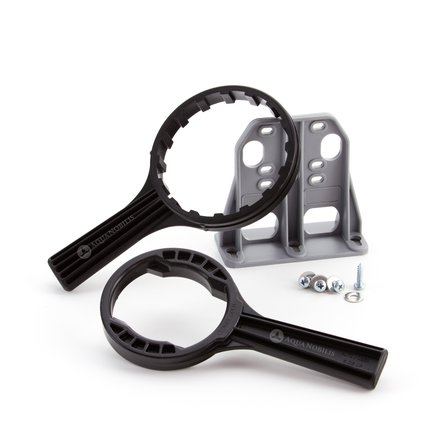

    • one plastic wall mount inlcuding screws to mount it on the device head
  • two device keys

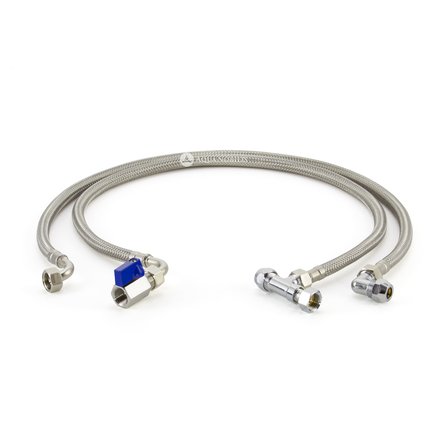

  • one inlet hose kit containing:
    • one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
    • with an angle valve tee (3/8") on one side
    • and a stainless steel ball valve on the other side
  • one outlet hose kit containing:
    • one flexible hose (approx. 80 cm long with one straight and one 90° angled connection)
    • with a union nut (3/8") on one side
    • and one 90° compression fitting (10 mm) on the other side
  • one Carbonit Refill cartridge NF2 filter cartridge

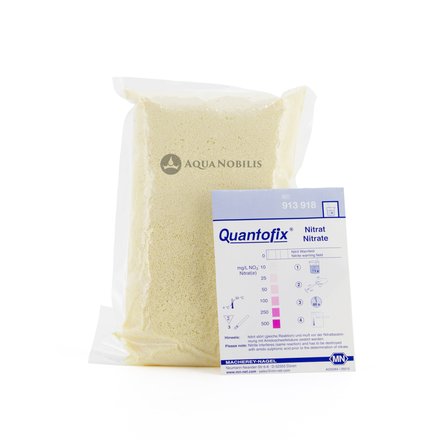

  • one pack of Carbonit nitrate ion exchange resins
  • one Carbonit GFP Premium U-9 filter cartridge
  • and nitrate test sticks

Characteristics

Characteristics

Type of connection: Under counter - separate withdrawl
Width: 330 mm
Height: 385 mm
Depth: 145 mm
Length of the filter cartridge: 248 mm (9 3/4")
Filter mesh (µm): 0.30
Adsorptive retention rate (Polar pesticides, medical residues, bacteria, ...): >99%
Flow rate (l/min at 4 bar): 1.5
Adsorptive retention rate (Lead, Copper): >95%
Adsorptive retention capacity: 13 m³
Adsorptive retention rate (Chlorine): >99%
Particle retention capacity: 10 m³
Max. useful life of the filter cartridge: 6 months
Blocks bacteria: Yes
Contains: Activated carbon Ion-exchange resin
Material: PP
Length of the hoses: 800 mm
Connection: 3/8" union nut Compression fitting (10 mm)
