CITO DUO Basic

Item number: 120QC-DK-AN1


399,00 €

including17% VAT., no shipping costs

3 pc. In stock

Shippingtime: 1-3workdays

pc.


Description

Basics

  • The CITO-QC is the further development of the confirmed VARIO-HP filter housing.
  • Filter replacement even simpler: Thanks to the QuickConnect (QC) bayonet coupling the filter-socket can be easily dismounted as a whole.
  • The head of the filter-assembly itself remains permanently attached to the wall, no hoses have to be touched.
  • The filer-socket can be opened and the filter cartridge can be replaced conveniently in the sink using the enclosed keys.
  • The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.
  • Double effect: Clever combination of two different cartridge types.
  • With the serial setup, the same water flows through both filter cartridges.

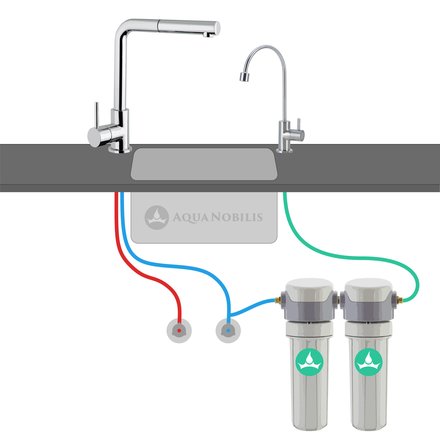

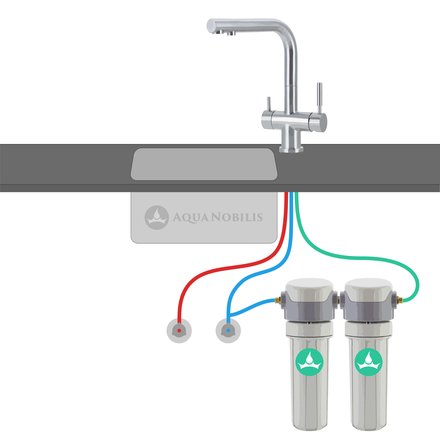

  • Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.

Compatible filter cartridges

Installation

Installation

  • The filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
  • The unit is to be permanently installed to the wall.
  • Dimensions without hoses (W x H x D): 31.5 x 38.5 x 14.5 cm3. With hoses 41 cm wide. CAUTION: Filter cartridge replacement requires a free space of 5 cm below the installed unit.
  • The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
  • TIP: When installing the ball valve directly at the angle valve tee, the filter unit plus hoses is only 37.5 cm wide.
  • Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
  • Only to be used with cold water and must be protected against freezing.

Scope of delivery

Scope of delivery

This CITO DUO Basic set contains the following parts
  • two Carbonit CITO-QC basic modules containing each:

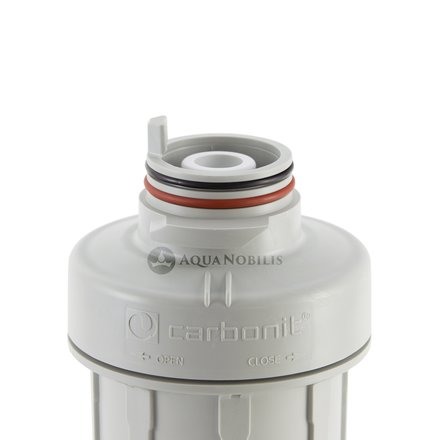

    • one CITO-QC device head with 3/8" connections and the Quick Connect filter cup

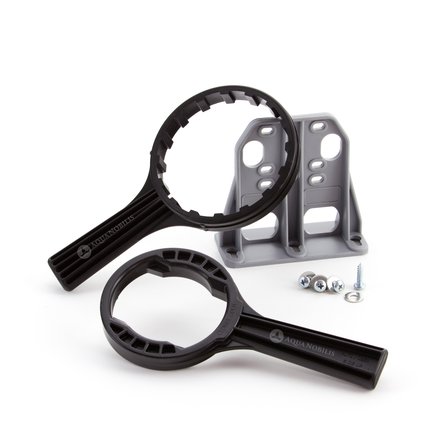

    • one plastic wall mount inlcuding screws to mount it on the device head
  • two device keys

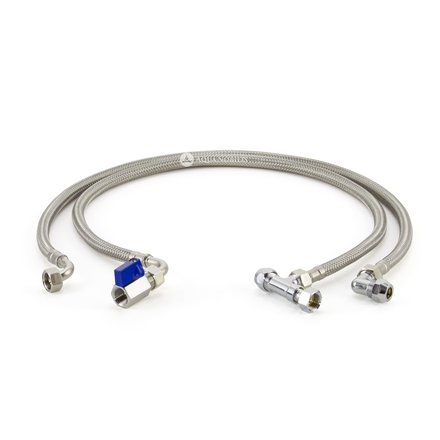

  • one inlet hose kit containing:
    • one flexible hose (approx. 80 cm long with one straight and one 90 angled connection)
    • with an angle valve tee (3/8") on one side
    • and a stainless steel ball valve on the other side
  • one outlet hose kit containing:
    • one flexible hose (approx. 80 cm long with one straight and one 90 angled connection)
    • with a union nut (3/8") on one side
    • and one 90 compression fitting (10 mm) on the other side

Characteristics

Characteristics

Length of the filter cartridge: 248 mm (9 3/4")
Width: 33 cm
Depth: 14.5 cm
Height: 38.5 cm
Length of the hoses: 80 cm
Material: PP
Connection: 3/8" union nut Compression fitting (10 mm)
