CITO-QC Classic
Description
Basics
- The CITO-QC is the further development of the confirmed VARIO-HP filter housing.
- The outstanding filtration results have been proven by many scientific assessments.
- Filter replacement even simpler: Thanks to the QuickConnect (QC) bayonet coupling the filter-socket can be easily dismounted as a whole.
- The head of the filter-assembly itself remains permanently attached to the wall, no hoses have to be touched.
- The filer-socket can be opened and the filter cartridge can be replaced conveniently in the sink using the enclosed keys.
- The filtration system can be connected easily to the water supply in any standard kitchen and is hidden elegantly under the counter.

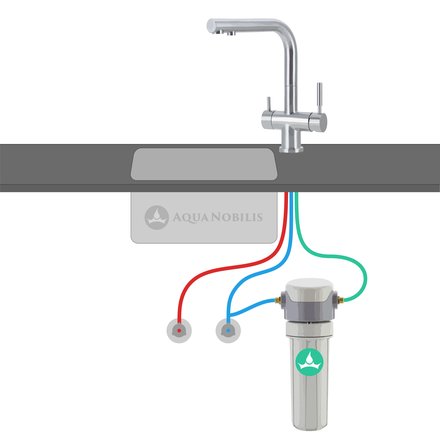

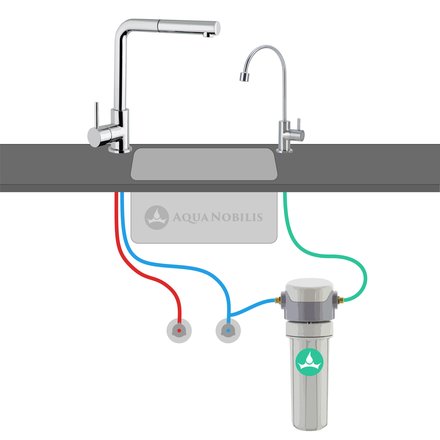

- Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
Compatible filter cartridges
- Will be delivered with a NFP Premium-9 filter cartridge:
- pure activated carbon filter cartridge
- filter mesh: 0.45 µm; flow rate: 2.5 l/min (at 4 bar)
- very high retention rates for heavy metals, pesticides, drug contaminations and chlorine
- provides the highest protection against bacteria (see assessments)
- Compatible to all 9 3/4" filter cartridges.
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
Installation
- The filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The unit is to be permanently installed to the wall.
- Dimensions without hoses (W x H x D): 17 x 38.5 x 14.5 cm3. CAUTION: Filter cartridge replacement requires a free space of 5 cm below the installed unit.
- The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Scope of delivery
Scope of delivery
This Carbonit CITO-QC Classic set contains the following parts
- one Carbonit CITO-QC basic module containing:
- one CITO-QC device head with 3/8" connections and the Quick Connect filter cup

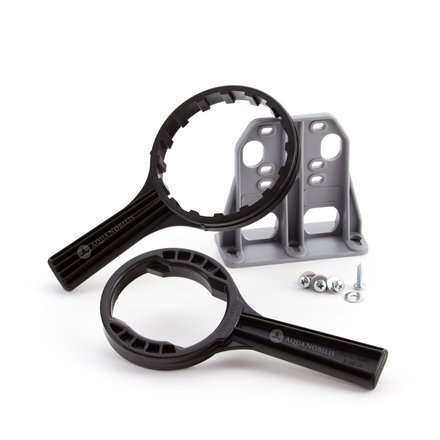

- one plastic wall mount inlcuding screws to mount it on the device head
- two device keys

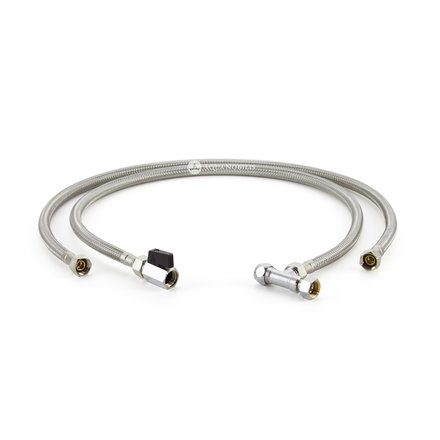

- one inlet hose kit containing:
- one flexible hose (approx. 80 cm with straight connections)
- with an angle valve tee (3/8") on one side
- and a ball valve on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm with straight connections)
- one Carbonit NFP Premium-9 filter cartridge
Files
User manualCharacteristics
Characteristics
| Type of connection: | Under counter - separate withdrawl |
| Width: | 17 cm |
| Height: | 38.5 cm |
| Depth: | 14.5 cm |
| Length of the filter cartridge: | 248 mm (9 3/4") |
| Filter mesh (µm): | 0.45 |
| Adsorptive retention rate (Polar pesticides, medical residues, bacteria, ...): | >99% |
| Flow rate (l/min at 4 bar): | 2.5 |
| Adsorptive retention rate (Lead, Copper): | >90% |
| Adsorptive retention capacity: | 10 m³ |
| Adsorptive retention rate (Chlorine): | >99% |
| Particle retention capacity: | 10 m³ |
| Max. useful life of the filter cartridge: | 6 months |
| Blocks bacteria: | Yes |
| Contains: | Activated carbon |
| Material: | PP |
| Length of the hoses: | 80 cm |
| Connection: | 3/8" union nut |
