Carbonit WFP 4,5 (Medium)
Description

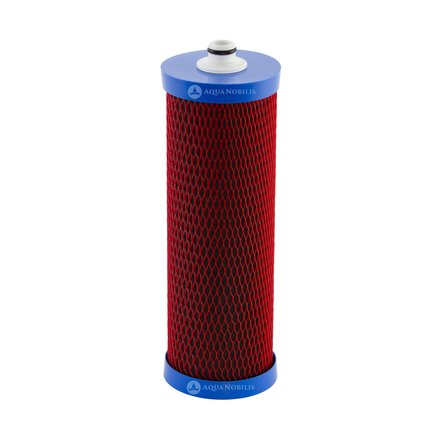

Carbonit WFP 4,5 (Medium) Water Filter Cartridge for QUADRO 60
- Very high and effective filtering performance and high flow rate at the same time.
- For the filtration of the entire water flow at the withdrawal point.
- Potentially suitable for filtering the entire water for your home (see operation notes).
- Optimal for professional applications (gastronomy, medical practice, office) and for the private home.
- High retention rates for pesticides, medical residues and chlorine.
- Good retention rate for heavy metals (e.g. lead and copper). (See table below.)
- Vitally important minerals, like magnesium and calcium, are not removed from the water.
- The filter cartridge consists of an activated carbon mono-bloc (Monoblock®) material based on coconut shell.
- Filter mesh: 1.2 µm; flow rate: 8.5 l/min or 34 l/min when used in QUADRO 60 (at 4 bar respectively).
- Filter capacity: ca. 18,000 litres of water (or 72,000 litres when used in QUADRO 60).
Compatible water filters
The cartridge fits into the following filter unit:
- Carbonit QUADRO 60 (4 cartridges required.)
Operation notes
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
- The high maximum flow rate of a QUADRO 60 filter unit allows filtering the entire cold water at the discharge point and the existing two-way tap may be left unchanged. You may of course install a separate water tap or a three-way water tap.
- You may use this cartridge in a QUADRO 60 filter unit to filter the entire water flow for a one-family home. Please check however that the water supply pressure is minimum 4 bar. Otherwise you better use a filter cartridge with a larger mesh size.
- Only to be used with cold water and must be protected against freezing.
Scope of delivery
- One Carbonit WFP 4,5 (Medium) filter cartridge including gaskets.
Characteristics
Characteristics
Diameter: | 84 mm |
Length of the filter cartridge: | 254 mm |
Filter mesh (µm): | 1.2 |
Adsorptive retention rate (Polar pesticides, medical residues, bacteria, ...): | 88% |
Flow rate (at 0,5 bar): | 1.06 l/min |
Flow rate (l/min at 4 bar): | 8.5 |
Adsorptive retention rate (Lead, Copper): | 72% |
Adsorptive retention capacity: | 19 m³ |
Adsorptive retention rate (Chlorine): | 87% |
Particle retention capacity: | 18 m³ |
Max. useful life of the filter cartridge: | 6 months |
Contains: | Activated carbon |
