Description

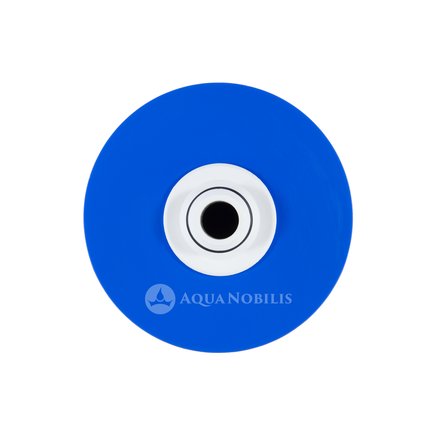

Carbonit WFP Water Filter Cartridges for QUADRO 60
- Contaminant filtered water not only for drinking but as well for your skin and hair.
- Water filtration at the entry point to your home.* (Installed right behind the water meter.)
- Comfortable access to filtered water for the entire home (including HOT water!).
- Ideal for efficient removal of chlorine, pesticides, medical residues and heavy metals.
- The finest filter mesh (0,40 µm) reliably removes bacteria, microorganisms and fungi from the water.
- Vitally important minerals, like magnesium and calcium, are not removed from the water.
- The filter cartridge consists of an activated carbon mono-bloc (Monoblock®) material based on coconut shell.
- Designed for the QUADRO 60 whole house filter unit (4 cartridges required).
- Central installation: You do not need special water taps or filter systems at each discharge point.
- Fields of application: homes, spa, wellness, gastronomy, medical practice, ... Refinement of food and drinks.
- For more details, please refer to the respective variant.
* The fine filter meshes of the WFP being less suitable for whole house water filtration, are however optimal for the filtration of the entire cold water flow at the discharge point, or for gastronomy and other professional applications.
Variants of the Carbonit WFP
We keep the Carbonit WFP filter cartridge in six different filter meshes. The following table shall give you an overview of the benefits and characteristics of the different variants.| Filter mesh | 0.40 µm | 1.2 µm | 4 µm | 8 µm | 16 µm | 24 µm |
|---|---|---|---|---|---|---|
| Flow rate (at 4 bar) | 3.5 l/min | 8.5 l/min | 17 l/min | 30 l/min | 46 l/min | l/min |
| Flow rate (when used in QUADRO 60 at 4 bar) | 14 l/min | 34 l/min | 60 l/min | 60 l/min | 60 l/min | 60 l/min |
| Retention rate for pesticides, ...* | 99 % | 88 % | 69 % | 56 % | 40 % | 25 % |
| Retention rate for chlorine* | 99 % | 87 % | 84 % | 73 % | 64 % | 55 % |
| Retention rate for heavy metals* | 93 % | 72 % | 63 % | 50 % | 35 % | 20 % |
| Blocks bacteria | Yes | No | No | No | No | No |
| Adsorptive retention capacity (ARC) | 15.5 m3 | 19 m3 | 20 m3 | 21.5 m3 | 24 m3 | 25 m3 |
| ARC when used in QUADRO 60 | 62 m3 | 76 m3 | 80 m3 | 86 m3 | 96 m3 | 100 m3 |
| Particle retention capacity (PRC) | 12.5 m3 | 18 m3 | 22.5 m3 | 26 m3 | 30 m3 | 33 m3 |
| PRC when used in QUADRO 60 | 50 m3 | 72 m3 | 90 m3 | 104 m3 | 120 m3 | 132 m3 |
* The indicated retention rates refer to the nominal flow rate at 4 bar. If the actual pressure or the real flow rate is lower, the contact time between water and activated carbon gets longer. Because of this the real retention rates tend to be higher than stated.
Which one is the right one for me?
In case you are not sure as to which type of filter cartridge fits best to your needs, then contact us. We are there to help you and are pleased to provide personal advice.
Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Characteristics
Characteristics
| Diameter: | 84 mm |
| Length of the filter cartridge: | 254 mm 460 mm |
| Filter mesh (µm): | 0.40 1.2 4 8 16 24 |
| Flow rate (at 2 bar): | 8.5 l/min 16 l/min |
| Flow rate (at 1 bar): | 14 l/min 21.5 l/min |
| Adsorptive retention rate (Polar pesticides, medical residues, bacteria, ...): | 25% 40% 56% 69% 88% >99% |
| Flow rate (at 0,5 bar): | 1.06 l/min 2.13 l/min 4 l/min 7 l/min 10.75 l/min |
| Flow rate (l/min at 4 bar): | 3.5 8.5 17 30 46 |
| Adsorptive retention rate (Lead, Copper): | 20% 35% 50% 63% 72% >93% |
| Adsorptive retention capacity: | 15.5 m³ 19 m³ 20 m³ 21.5 m³ 24 m³ 25 m³ |
| Adsorptive retention rate (Chlorine): | 55% 64% 73% 84% 87% >99% |
| Particle retention capacity: | 12.5 m³ 18 m³ 22.5 m³ 26 m³ 30 m³ 33 m³ |
| Max. useful life of the filter cartridge: | 6 months |
| Blocks bacteria: | Yes |
| Contains: | Activated carbon |
