Carbonit WS8P sink tap
Description

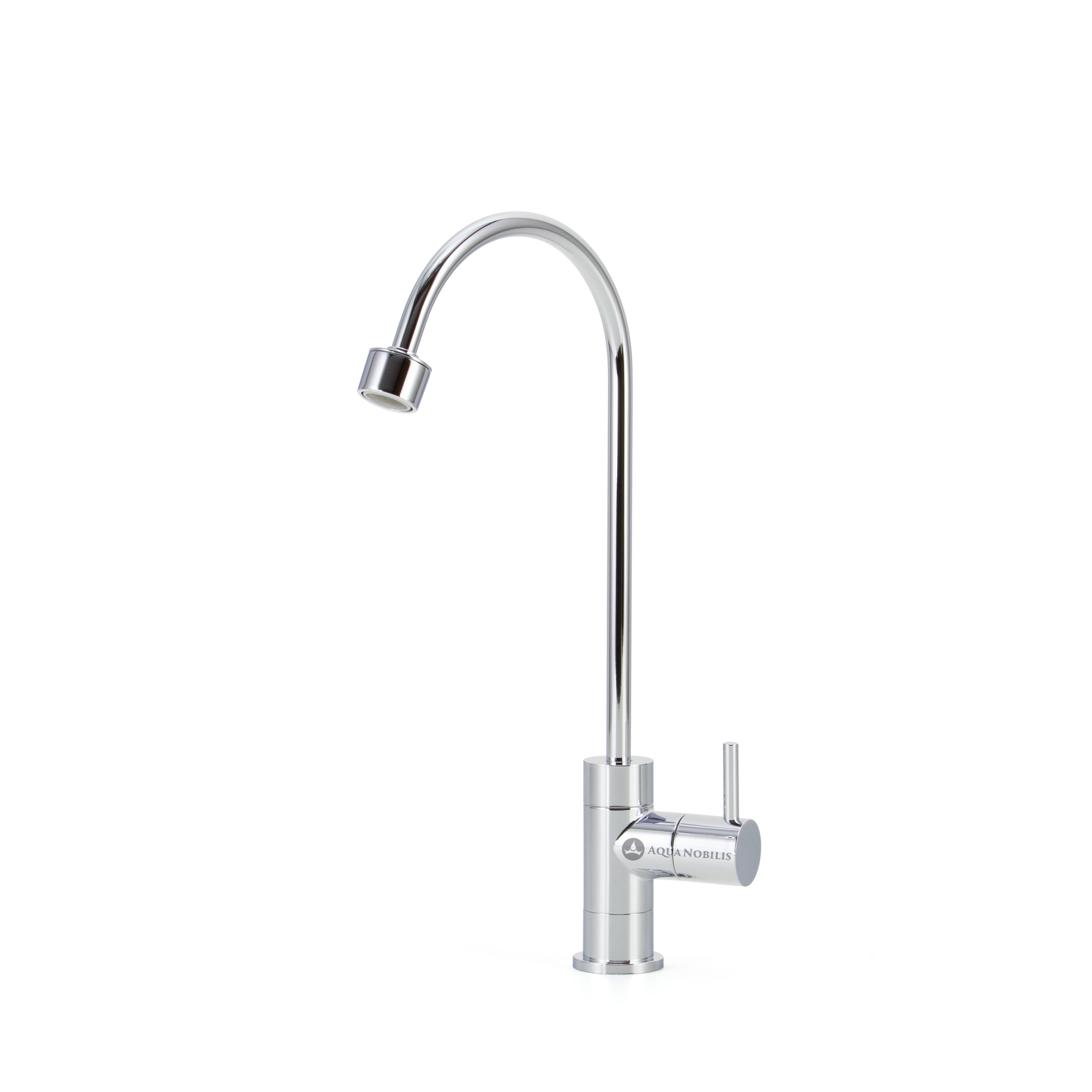

Carbonit WS8P one way sink tap
- 360 degree tilting tap.

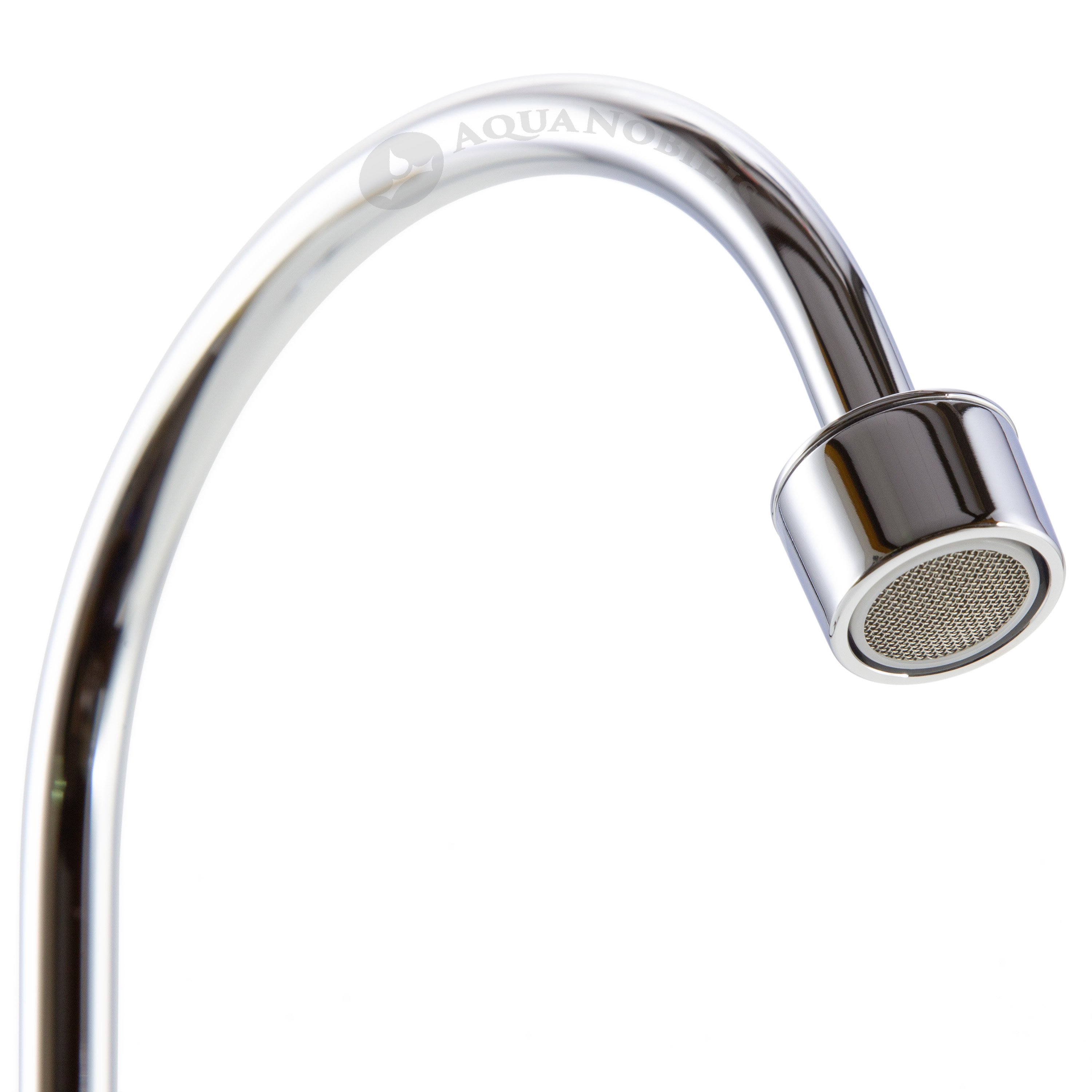

- Discharge pipe with perlator and M22 thread, designed for lighter water whirlers.
- Housing made from chrome-plated plastic and discharge pipe from chrome-plated brass.

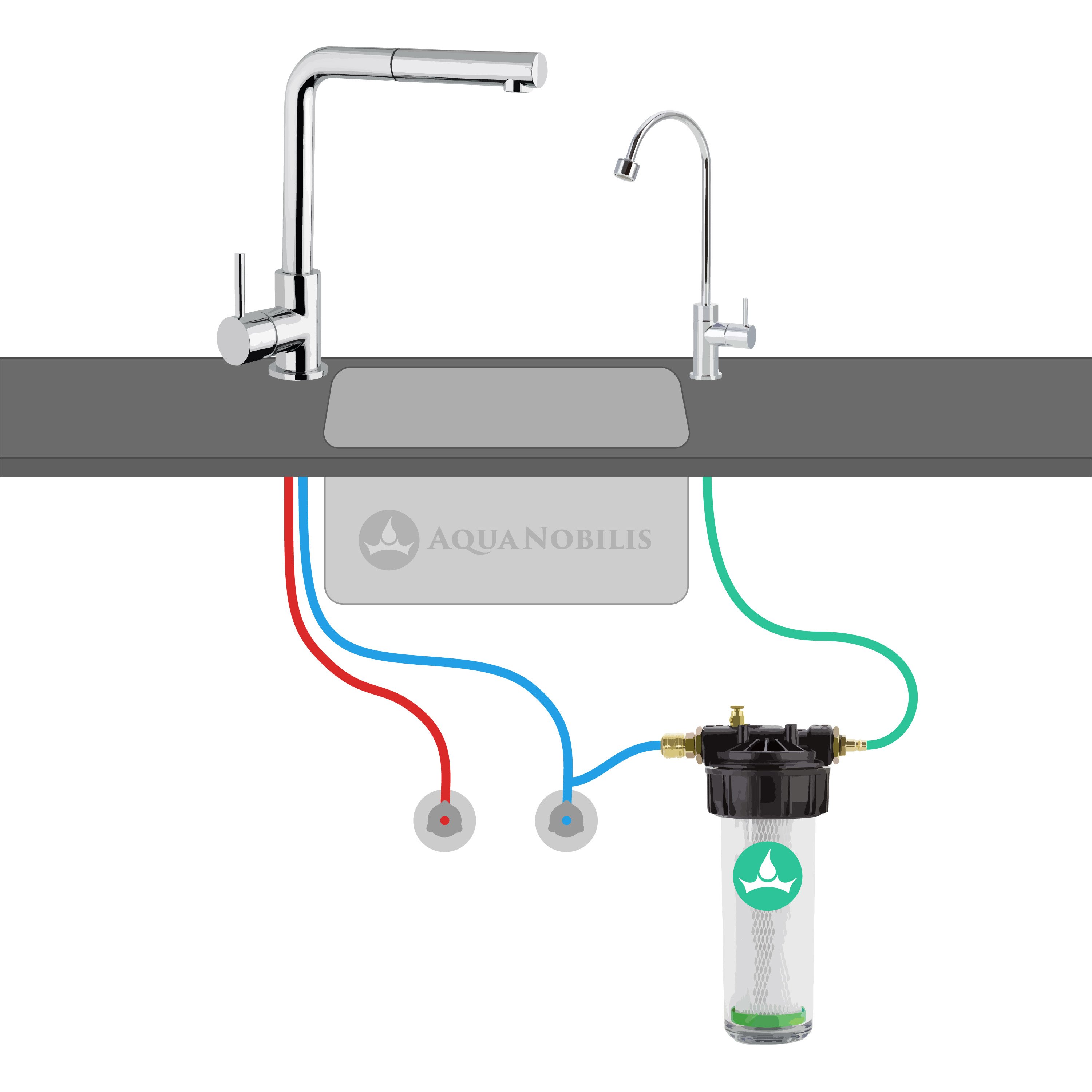

- Compatible with all the under counter filters.
- Ceramic sealing.
- Tap height: 29.2 cm (measured from the worktop).
- Discharge clearance height: 22 cm (measured from the worktop).
- Fits a maximum worktop thickness of 3.7 cm.
- Connection: 3/8" thread (adapter enclosed).
- For further information and exact dimensions please refer to the tab Characteristics.
Scope of delivery
This Carbonit sink tap WS8P set contains the following parts- one sink tap with ceramic valves and M22 male thread
- one perlator
- one connection adapter 3/8" male thread
- all parts needed for mounting
Characteristics
Characteristics
Suitable for low pressure boilers: | Yes |
Width: | 73 mm |
Height: | 292 mm |
Depth: | 195 mm |
Material: | Chrome-plated plastic Chrome-plated brass |
Finish: | Shiny |
Connection: | 3/8" male thread M22 male thread |
Height of the outlet: | 220 mm |
Distance outlet for filtered water - tap central axis: | 125 mm |
Diameter of the bore in the countertop: | 12 - 23 mm |
Max. thickness of the countertop: | 37 mm |
