Carbonit DUO-HP Basic (serial)
Description
Carbonit DUO-HP Basic (serial) under counter water filter
- Double effect: Clever combination of two different cartridge types.
- With the serial setup, the same water flows through both filter cartridges.

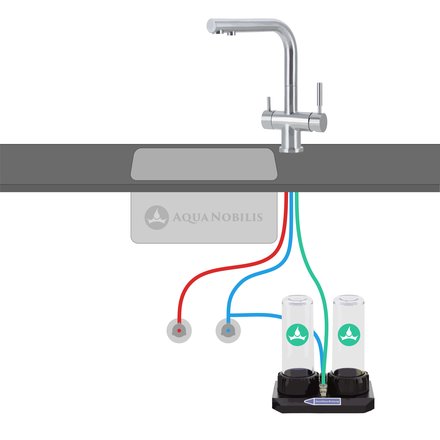

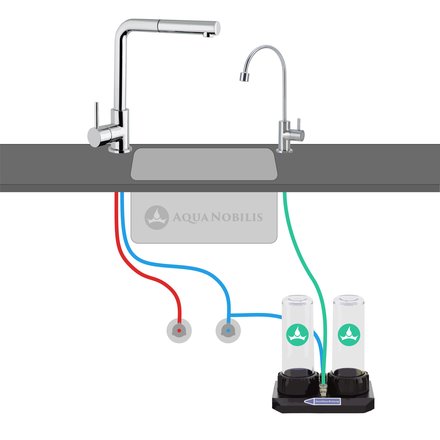

- Set is conceived for the separate water withdrawal via a separate sink tap or a three-way sink tap.
- The high-quality and massive base, made from polyoxymethylen, is manufactured entirely in Germany.
- No drilling: The filter unit can be located decently under the counter, avoiding any compromise on kitchen design.
- Cartridge replacement is comfortable and easy with the quick couplings.
Compatible filter cartridges
- The Carbonit DUO-HP Basic (serial) set is delivered without filter cartridges.
- Basically compatible to all 9 3/4" filter cartridges.
- Be aware though: Not all filter combinations make sense (e.g. two cartridges of the same type). Appropriate combinations would be for example:
- Combination of a VFS prefilter 1 µm with an activated carbon filter cartridge (e.g. GFP Premium-9 or EM Premium 5)
- Using a refill cartridge NF2 with ion exchange resins (for lime (total hardness), lime (carbonate hardness), nitrate or fluoride/arsenic) with downstream an activated carbon filter cartridge
- Two refill cartridges NF2 with diverse resins in order to remove e.g. lime (total hardness) and nitrate from the water
- For hygienic reasons, we recommend replacement of the cartridges every 6 months (according to DIN 1988).
- Do not miss any cartridge replacement, apply for our non-binding and free of charge filter subscription service.
Installation
- The DUO-HP Basic (serial) filter unit can be installed at any standard water connection in the kitchen or in the bathroom.
- The assembly is delivered with an angle T-valve (3/8") and it is thus designed for separate water withdrawal.
- Hoses and 3/8-inch fittings are enclosed in the set. As required, these can be extended.
- Only to be used with cold water and must be protected against freezing.
Dimensions and other information on the Carbonit DUO-HP Basic (serial)
| Type of connection: | Under counter |
|---|---|
| H x B x T: | 305 x 280 x 175 mm |
| Material: | Grilamid TR 90, POM (Hostaform C 2571) |
| Length of the filter cartridge: | 248 mm | 9 3/4" |
| Suitable for low pressure boilers: | Yes |
| Length of the connection hoses: | approx. 800 mm |
| Connection: | 3/8" union nut, Compression fitting (10 mm), NW 7,2 Quick couplings |
Scope of delivery
Scope of delivery
This Carbonit DUO-HP Basic (serial) set contains the following parts
- one Carbonit DUO-HP (serial) basic module with two quick couplings (DN 7,2)

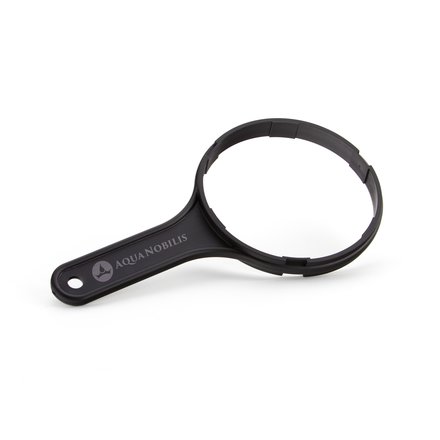

- one device key

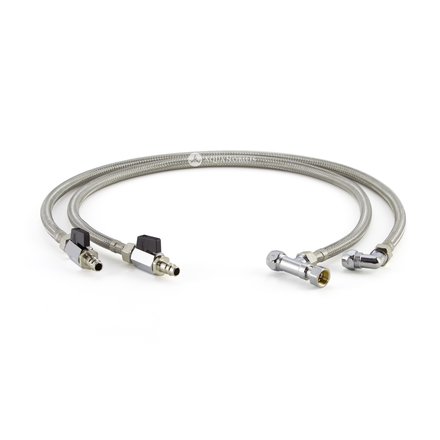

- one inlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with an angle valve tee (3/8") on one side
- and a ball valve with nipple (DN 7,2) on the other side
- one outlet hose kit containing:
- one flexible hose (approx. 80 cm long with straight connections)
- with a ball valve with nipple (DN 7,2) on one side
- and one 90° compression fitting (10 mm) on the other side
